What is a Mini Junction Box?

A mini junction box is a compact electrical enclosure designed to safely house and protect cable connections, wiring terminals, and small electrical components. It is widely used in industrial, automotive, marine, communication, and outdoor electrical systems where space is limited but protection and reliability are critical.

Unlike standard junction boxes, a mini junction box is engineered with a smaller footprint, higher precision, and improved sealing capability, making it ideal for modern compact electrical systems. It prevents dust, moisture, vibration, and mechanical impact from damaging internal electrical connections.

When manufactured using deep drawing stainless steel stamping processes, the mini junction box becomes even more durable, seamless, and corrosion-resistant—ensuring long service life in harsh environments.

Product Overview: Custom Deep Drawn Mini Junction Box

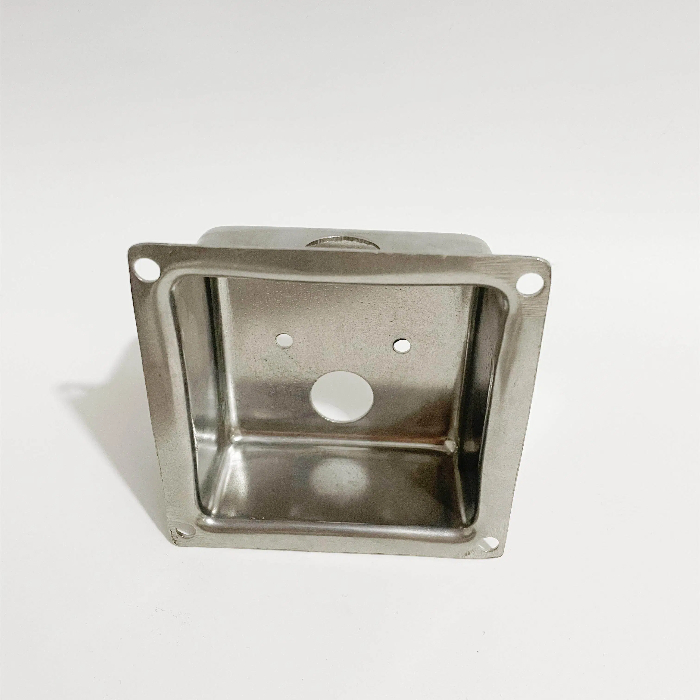

The Custom Deep Drawn Mini Junction Box Corrosion Resistant Stainless Steel Stamping Cable Connection Enclosure is a high-precision metal housing designed for secure electrical distribution and protection.

It is produced through deep drawing stamping technology, forming a seamless one-piece structure that eliminates weld seams and leakage risks. This enhances structural integrity and improves waterproof and dustproof performance.

Key Features:

• Material Options: Stainless steel (304 / 316 / 201)
• Manufacturing Process: Deep drawing + precision stamping
• Surface Finish: Brushed, polished, passivated, or powder coated
• Corrosion Resistance: Excellent performance in outdoor and marine environments
• Compact Design: Space-saving mini structure
• High Mechanical Strength: Resistant to vibration and impact
• Sealing Capability: Compatible with rubber gaskets and IP-rated designs
• Customization: Cutouts, holes, threading, logos, mounting points available

Manufacturing Process: Deep Drawn Stamping Technology

Deep drawing is a cold-forming metal stamping process where a flat stainless steel sheet is pressed into a die to form a hollow enclosure.

Compared with welding or assembly-based boxes, deep drawn junction boxes offer:

• Seamless one-piece structure
• No welding stress or weak joints
• Higher waterproof capability (IP65–IP67 potential)
• Better dimensional consistency
• Reduced long-term failure risk

This makes it ideal for high-reliability electrical systems.

Applications of Mini Junction Boxes:

Mini junction boxes are widely used across multiple industries:

Automotive Industry:

• Wiring harness protection
• Sensor connection housing
• EV battery auxiliary circuits

Industrial Equipment:

• Control panel wiring
• PLC system protection
• Automation machinery circuits

Marine & Outdoor Systems:

• Navigation systems
• Lighting control units
• Offshore electrical protection

Communication Systems:

• Signal distribution boxes
• Network cable protection
• Telecom infrastructure

Renewable Energy:

• Solar junction systems
• Wind turbine electrical connections

Advantages of Stainless Steel Mini Junction Box:

1. Corrosion Resistance:

Stainless steel provides long-term resistance against moisture, salt spray, and chemicals.

2. High Structural Strength:

Deep drawn forming increases rigidity and impact resistance.

3. Compact and Lightweight Design:

Ideal for modern systems requiring miniaturization.

4. High Customization Flexibility:

Supports CNC secondary machining for precise cutouts and assembly requirements.

5. Long Service Life:

Reduced failure rate compared to welded or plastic enclosures.

Flow Wing Case Study:

At Flow Wing, we recently developed a custom deep drawn mini junction box project for an industrial automation customer in Europe.

Customer Requirement:

The client required:

• Compact stainless steel enclosure
• IP-rated sealing performance
• Multiple cable entry points
• High corrosion resistance for outdoor use
• Tight dimensional tolerance for assembly integration

Our Solution:

We designed and manufactured the enclosure using:

• 304 stainless steel deep drawing process
• Precision stamping die development
• CNC secondary machining for cable ports
• Surface passivation treatment for corrosion resistance

Results:

• Achieved stable IP65 sealing performance
• Reduced assembly leakage risk by eliminating weld seams
• Improved installation efficiency by 30%
• Extended product lifespan in outdoor environments

This project demonstrated our capability in custom metal enclosure manufacturing and precision deep drawing technology.

Quality Control & Engineering Standards:

Flow Wing Metal applies strict QC processes:

• First Article Inspection (FAI)
• Dimensional inspection (CMM measurement)
• Surface quality inspection
• Leak & sealing tests (when required)
• Material certification (RoHS / REACH optional)

We ensure every mini junction box meets industrial-grade reliability standards.

Frequently Asked Questions (FAQ):

Q1: What is the difference between a junction box and a mini junction box?

A mini junction box is a compact version designed for space-limited applications, while standard junction boxes are larger and used for complex wiring systems.

Q2: Why use stainless steel instead of plastic?

Stainless steel offers superior strength, heat resistance, and corrosion resistance, making it suitable for harsh environments.

Q3: Can the mini junction box be waterproof?

Yes, with proper sealing design and gasket integration, it can reach IP65, IP66, or even IP67 protection levels.

Q4: What industries commonly use mini junction boxes?

Automotive, industrial automation, renewable energy, marine systems, and communication equipment.
