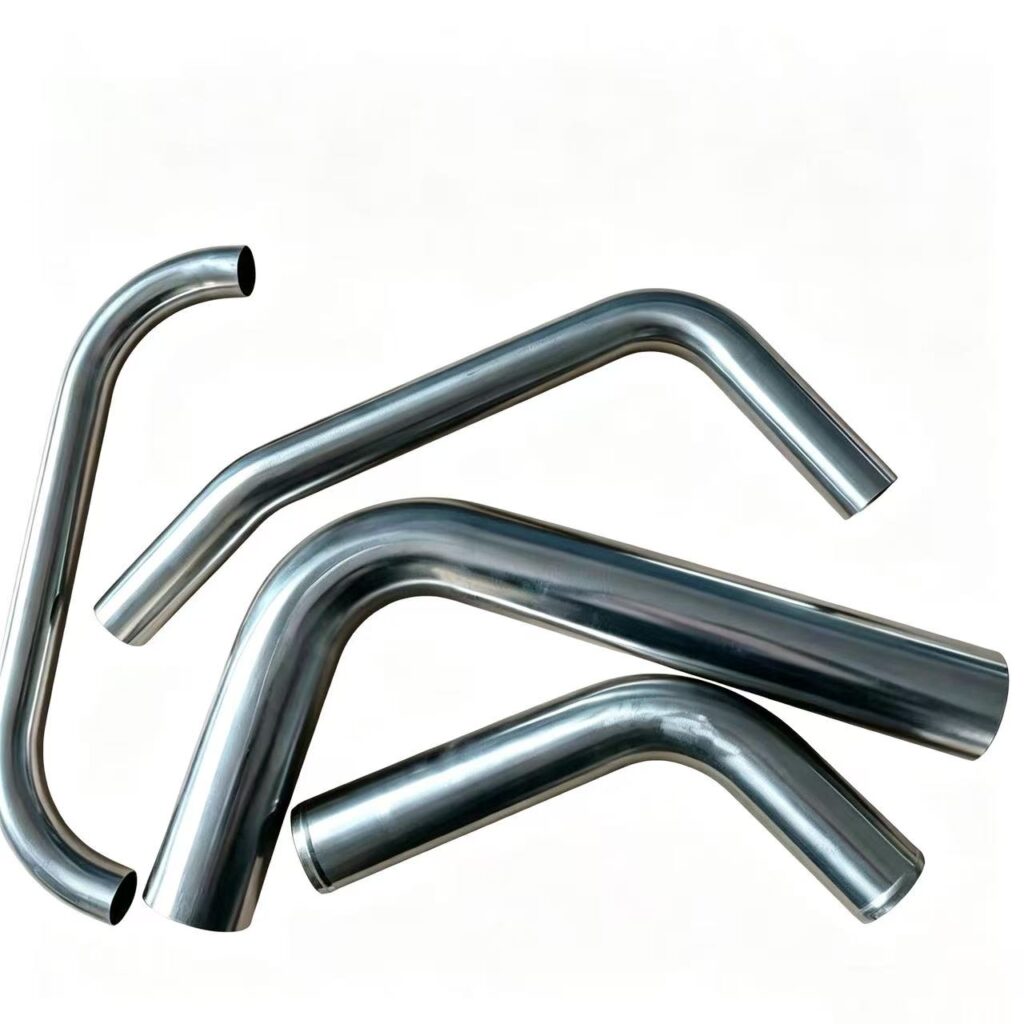

Precision Pipe Bending & Fabrication Solutions
What is Pipe Bending?

Pipe bending is a metal forming process used to permanently shape a straight pipe or tube into a specific curvature or angle, producing smooth, continuous arcs rather than angled joints created by welding fittings (elbows). Unlike “tube bending,” which focuses on structural or aesthetic applications, pipe bending typically refers to the deformation of hollow sections designed to convey fluids, gases, or slurries under pressure.

The goal of high-quality pipe bending is to achieve the desired geometry without compromising the pipe’s wall thickness, ovality (roundness), or internal flow characteristics. Poor bending techniques can lead to:

– Crimping / Kinking: Collapse of the inner radius.

– Wall Thinning: Excess stretching on the outer radius, weakening pressure ratings.

– Ovality (Flattening): Reduction in cross-sectional area, restricting flow.

At Flow Wing Metal, we engineer bends that maintain structural integrity, pressure capacity, and visual consistency.

Bending Equipment

Modern pipe bending relies on specialized machinery calibrated for specific diameters, wall thicknesses, and materials. Flow Wing Metal operates a diverse fleet of bending equipment:

 Bending Methods & Techniques

Selecting the correct bending method prevents material failure and ensures production efficiency.

1. Rotary Draw Bending (RDB)

The most common and precise method. The pipe is clamped to a rotating die (former) and drawn around a fixed radius. A pressure die and wiper die support the material to prevent buckling.

– Flow Wing Standard: Used for 90% of our stainless steel handrail and process piping projects.

– With or without mandrel: A mandrel (flexible internal rod) is inserted inside the pipe to support the inner wall, critical for thin-wall materials or tight radii (bend radii < 3× OD).

2. Mandrel Bending (CNC)

An advanced subset of rotary draw bending. A series of articulated steel balls on a cable (the mandrel) occupies the inside of the pipe during bending. This completely prevents kinking, flattening, and rippling.

– Flow Wing Advantage: Achieves radii as tight as 1.5× pipe OD on Schedule 10 316L stainless, which is not possible without a mandrel.

3. Induction Bending

A heat-assisted process where a localized induction coil heats a narrow band of the pipe to 850–1,100°C (1560–2010°F). The pipe is then mechanically pushed or rotated through the coil while a clamping arm creates the curve.

– Why use it? No internal mandrel is needed; it produces consistent wall thickness and virtually no ovality. Ideal for heavy-wall, large-diameter, or coated pipes.

4. Roll Bending (Pyramid Rolling)

Three adjustable rollers (two lower, one upper) progressively form the pipe into a large-radius curve or full circle. The pipe passes back and forth through the rollers until the desired curvature is achieved.

– Application: Architectural hoops, tank coils, tunnel support ribs.

 Material Mastery

Different materials react differently to bending forces. Flow Wing Metal selects lubricants, mandrel configurations, and bend speeds based on material grade.

 Surface Finishing Post-Bending

Bending introduces stresses, lubrication residues, and potential micro-scratches. Flow Wing Metal restores and enhances the pipe surface after every bend.
