What Are Aluminum Extrusion Corner Brackets？

Aluminum extrusion corner brackets are L shaped or gusseted connectors designed to join two or three aluminum profiles at right angles. They fit into the T slot channels of standard extrusion systems like 2020, 3030, 4040, 4080, and 4590 series.

Most brackets are made from aluminum alloy 6061 or 6063 and finished with clear anodizing or black anodizing. The standard versions work well for static loads like workbenches and enclosures.

However, when your frame moves, shakes, or carries heavy dynamic loads, aluminum extrusion corner brackets need reinforcement. That reinforcement comes from precision TIG welding.

Our approach is simple: machine the bracket, fit it to your extrusion, then add welded fillets at the inside corner or along the joint line. The result is a corner bracket that cannot loosen over time.

Why Standard Corner Brackets Sometimes Fail？

Aluminum extrusion corner brackets are everywhere. They hold together 3D printer frames, CNC routers, conveyor systems, workbenches, and industrial guarding. The standard solution is a die cast or CNC machined bracket bolted into the T slot.

But standard brackets have limits. Under high vibration, heavy loads, or dynamic stress, bolted corner joints can loosen or shift. For applications where failure is not an option, a standard bracket is not enough.

This is where our capability stands apart. We are an aluminum welding shop first. We do not just sell off the shelf brackets. We manufacture custom aluminum extrusion corner brackets and we offer TIG welded reinforcement as an upgrade for customers who need absolute joint rigidity.

Aluminum extrusion corner brackets become permanent, load bearing structures when welding is added to the bolted connection.

Our Manufacturing Process For Aluminum Extrusion Corner Brackets:

CNC Cutting and Drilling:

We start with 6061 aluminum plate or bar stock in thicknesses from 3mm to 12mm. Our CNC machining center cuts the bracket profile with precise slot positions to match your T slot spacing. We can produce any hole pattern, counterbore, or pocket you specify.

Surface Preparation:

Before welding, all mating surfaces are cleaned and chemically etched to remove aluminum oxide. This step is critical. Dirty aluminum does not weld cleanly. Our preparation ensures porosity free welds on every bracket.

TIG Welded Reinforcement:

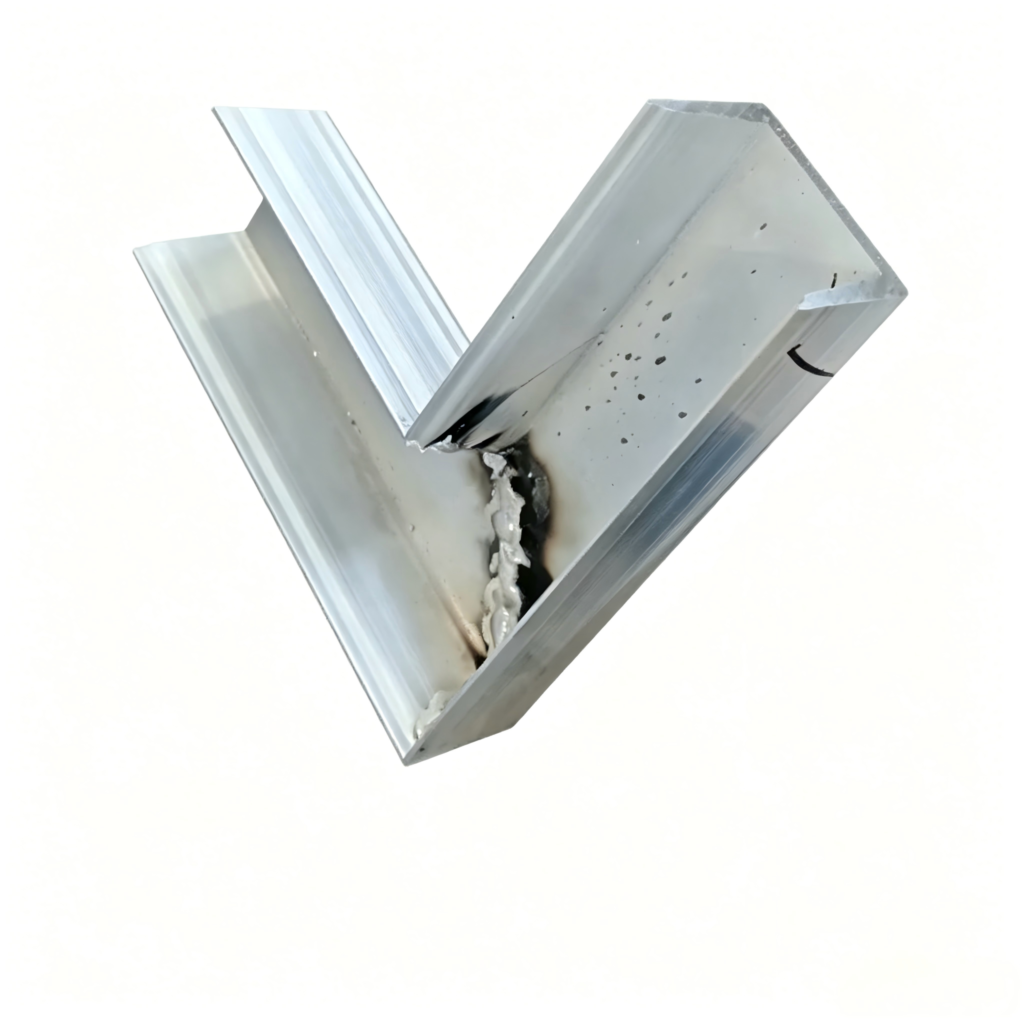

For customers who need maximum joint strength, we add TIG welded fillets along the inside corner of the bracket. We use ER4047 or ER5356 filler depending on your application. The weld adds about 2mm to 3mm of material thickness at the stress point, effectively doubling the bracket load capacity.

Post Weld Finishing:

After welding, we deburr all edges and either leave the bracket raw, clear anodize it, or powder coat it. Welded brackets show a visible bead. Some customers prefer this look because it signals strength. Others request sanding and blending so the weld disappears. We offer both.

Aluminum Extrusion Corner Brackets For Different Series:

2020 Series Aluminum Extrusion Corner Brackets:

For small 3D printers, light duty automation, and display stands. Our 2020 brackets are typically 3mm or 4mm thick. Welding these small brackets requires low amperage TIG and steady hands. We weld them only when requested because the small size makes heat management difficult. But for high vibration applications, even a small welded 2020 bracket outperforms a standard cast bracket.

3030 Series Aluminum Extrusion Corner Brackets:

The most common size for medium duty frames, CNC routers, and workstations. Our 3030 aluminum extrusion corner brackets use 5mm or 6mm thick material. This is the ideal size for TIG welded reinforcement. The extra material absorbs weld heat without distortion. Many of our automation customers order 3030 brackets with welded inside corners as their standard.

4040 and 4080 Series Aluminum Extrusion Corner Brackets:

Heavy duty machine frames, conveyor systems, and industrial work cells. These brackets use 6mm to 10mm thick aluminum. Welding 4040 series brackets is straightforward. The large mass acts as a heat sink. We often add dual pass welds on both inside faces for maximum rigidity.

4590 and Larger Series:

For custom industrial framing and heavy equipment bases. We fabricate these aluminum extrusion corner brackets from 10mm or 12mm plate. Welding is always included because brackets this large are usually part of a structural frame where safety is critical.

Why Add TIG Welding To Aluminum Extrusion Corner Brackets？

You might wonder why anyone would weld a bolted corner bracket. Here are four real reasons from our customer projects.

Vibration Loosening:

Standard brackets rely on friction between the bracket and the extrusion. Over time, vibration works the bolts loose. A welded bracket cannot loosen. It becomes a permanent part of the frame.

Higher Load Capacity:

A standard 5mm aluminum extrusion corner bracket might hold 200 kg in static load but only 80 kg under dynamic load. Adding a TIG welded fillet increases dynamic load capacity by roughly 150 percent. We have tested this.

Electrical Grounding:

In automated equipment, bolted joints can create poor electrical continuity. A welded bracket provides a solid metal to metal path for grounding. This matters for CNC machines and robotic cells.

No Hidden Movement:

Some frames look rigid but have micro movement at the joints. This ruins precision for CNC routers and measuring equipment. Welded aluminum extrusion corner brackets eliminate micro movement entirely.

Custom Options For Aluminum Extrusion Corner Brackets:

Thickness Options:

From 3mm for light duty up to 12mm for structural applications.

Hole Patterns:

Standard 2 hole, 3 hole, or 4 hole per leg. Or custom patterns with slots for adjustability.

Gusset Reinforcement:

For extreme loads, we can add a diagonal gusset between the two legs. The gusset is welded in place. This creates a bracket that is almost impossible to bend.

Welded Assembly:

Some customers want not just a welded bracket but a fully welded corner where the extrusion ends are also welded to the bracket. This is a different product class more like a welded frame corner. We do this as well. Contact us with your drawing.

Surface Finish:

Raw, clear anodized, black anodized, or powder coated in any RAL color.

Quality Control For Every Bracket:

尺寸检查：

Every bracket is checked against the CAD drawing. Slot positions must be within plus or minus 0.2mm. Thickness tolerance is plus or minus 0.1mm.

Weld Inspection:

Welded brackets receive 100 percent visual inspection. We look for undercut, porosity, and incomplete fusion. Any bracket with a visible weld defect is rejected and remade.

Sample Load Testing:

For batch orders over 50 pieces, we pull one bracket every 25 pieces and test it on a hydraulic press. We measure the load at failure. If the bracket fails below your specified requirement, the entire batch is re-evaluated.

Material Certifications:

We can provide mill test reports for the 6061 aluminum used in your brackets. This is often required for industrial and government projects.

Aluminum Extrusion Corner Brackets For Common Applications:

CNC Router Frames:

CNC routers vibrate during cutting. Standard brackets loosen and affect cut accuracy. Our welded aluminum extrusion corner brackets keep gantry joints rigid for thousands of operating hours.

Conveyor Systems:

Conveyors run continuously. Bolted joints eventually shift. Welded brackets on conveyor legs and cross braces eliminate maintenance calls for loose frame connections.

Industrial Work Cells:

Safety guarding and automation frames need to stay exactly where they are installed. A shifted guard can create a safety hazard. Welded brackets provide permanent positioning.

Electric Vehicle Battery Testing Frames:

EV battery test frames must handle dynamic loads from hydraulic actuators. Bolted joints fail quickly. We have supplied welded 4040 series aluminum extrusion corner brackets to multiple EV test labs.

Custom 3D Printers:

Large format 3D printers need ultra rigid frames. Any movement ruins print quality. Our welded brackets are standard equipment for several industrial printer manufacturers.
