Need a custom conveyor belt frame for your material handling system Our MIG welding service offers 2mm to 6mm steel 5 stage rust protection and custom lengths up to 50 feet

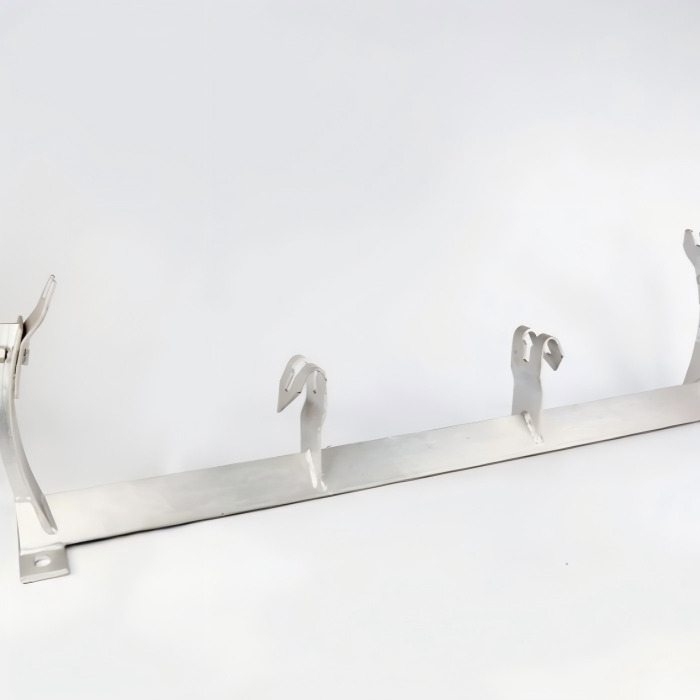

What Is a Conveyor Belt Frame and Why Quality Matters?

A conveyor belt frame is the structural backbone of any material handling system. It supports the belt, rollers, pulleys, and the load being transported. Without a strong and precisely built frame, the entire conveyor system fails. Belts misalign. Rollers wear unevenly. Downtime increases. Repair costs mount.

That is why choosing the right fabrication partner for your conveyor belt frame matters so much. A poorly built frame uses undersized materials, weak corner joints, and inconsistent weld seams. Over time, these defects lead to warping, cracking, and structural failure. By contrast, a professionally welded one provides decades of reliable service in demanding industrial environments.

Our shop specializes in MIG welding. We build every conveyor belt frame with precision, care, and industrial grade equipment. The result is a product that fits your exact specifications and stands up to harsh conditions year after year.

Why MIG Welding Is the Right Choice for Conveyor Belt Frame?

MIG welding stands for Metal Inert Gas welding. It is widely considered the best method for fabricating structural frames because it offers several unique advantages over other welding techniques.

First, MIG welding creates deep penetrating joints with excellent strength. For a conveyor belt frame, this matters because the frame must support heavy loads and withstand constant vibration. Poor welds will crack at the joints. Once a crack starts, it spreads quickly. The entire frame becomes unsafe. MIG welding prevents this problem by fusing the base metals completely.

Second, MIG welding works efficiently with various steel profiles. A conveyor belt frame typically uses rectangular tubing, C channel, angle iron, and flat bar. MIG allows us to join these different profiles seamlessly, creating a unified structure that performs as one solid piece.

Third, MIG welding produces consistent, repeatable results. When we build multiple units of the same design, each weld looks and performs identically. This consistency is essential for customers who need multiple frames for long production lines.

For customers who demand durability, our MIG welded conveyor belt frame delivers performance that ordinary fabrication shops cannot match.

The Welding Service Process:

Ordering a custom conveyor belt frame from us is straightforward. Here is how it works.

First, you contact us with your requirements. Length, width, height, material preference, load capacity, and any special features. The more detail you provide, the faster we can deliver a quote.

Second, we create a design drawing. You will see exactly where every weld, crossmember, and bracket goes. Once you approve the design, we start fabrication.

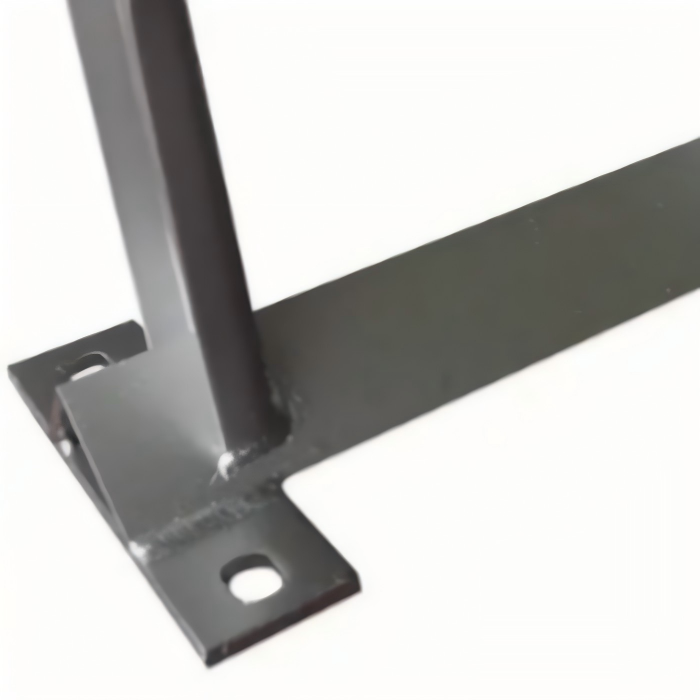

Third, our MIG welding team cuts and assembles your conveyor belt frame using precision equipment. Each joint is welded for maximum strength. Each weld is inspected for full penetration and smooth finish.

Fourth, we apply your chosen finish. Powder coating takes about two days including curing time. Stainless steel units skip coating but receive passivation treatment.

Fifth, we pack and ship your conveyor belt frame to your door. Most orders ship within 12 business days after design approval. Rush service is available for urgent needs.

Custom Sizes and Configurations Available:

One of the biggest frustrations with off the shelf conveyor frames is limited sizing. Standard the products come in fixed lengths and widths that rarely match your application perfectly. You end up with wasted space or components that barely fit.

Our approach starts with your specific requirements. We ask about the length, width, and height you need. We ask about the belt width, roller spacing, and load capacity required. We ask about the environment where the conveyor belt frame will operate. Then we design a solution that fits your application exactly.

Need a frame that is 20 feet long and 24 inches wide? We can build that. Need extra crossmembers for heavy loads? We can add those. Need mounting plates for motors or sensors? We can weld those in place.

Because each of it is custom fabricated, you are never forced to compromise. You get exactly what you need, nothing more and nothing less.

Applications for Conveyor Belt Frame:

A custom MIG welded conveyor belt frame serves many industries and applications.

Mining and aggregate handling requires heavy duty frames that withstand falling rocks, abrasive dust, and extreme loads. Our reinforced conveyor belt frame designs excel in these harsh conditions.

Food processing demands stainless steel frames with sanitary finishes. No cracks or crevices where bacteria can hide. Our MIG welded stainless steel conveyor belt frame meets FDA and USDA requirements.

Warehouse and distribution centers need light to medium duty frames for parcel handling. Our mild steel conveyor belt frame with powder coat finish provides years of reliable service at competitive prices.

Manufacturing plants use conveyor belt frames for assembly lines, parts handling, and scrap removal. Custom lengths and widths ensure seamless integration with existing equipment.

Recycling facilities require frames that resist impact and abrasion from sharp or heavy materials. Our heavy gauge conveyor belt frame stands up to the toughest recycling applications.

Pharmaceutical and chemical industries demand corrosion resistant frames for cleanroom or hazardous environments. Our stainless steel or coated conveyor belt frame meets these stringent requirements.

Frequently Asked Questions About Conveyor Belt Frame:

Q1: Can you build a conveyor belt frame in custom lengths?

A: Yes. We can build any length from 2 feet to 50 feet in a single section. For longer conveyors, we design modular frames that bolt together. Just tell us your required length and we will handle the rest.

Q2: What material thickness do you recommend for a conveyor belt frame?

A: For most industrial applications, 3mm steel works well. For heavy duty mining or aggregate handling, we recommend 5mm to 6mm. For light duty warehouse use, 2mm may be sufficient. We will help you choose based on your load and environment.

Q3: What materials can you use for a conveyor belt frame?

A: We work with mild steel, stainless steel (304 or 316), and aluminum. Stainless steel is recommended for food, pharmaceutical, or outdoor applications. Mild steel is economical for most industrial uses.

Q4: How long does it take to build a custom conveyor belt frame?

A: Typical lead time is 12 business days after design approval. Rush orders can be completed in 7 days for an additional fee. Complex designs with many custom features may take longer.

Q5: Do you offer roller mounts and brackets for the conveyor belt frame?

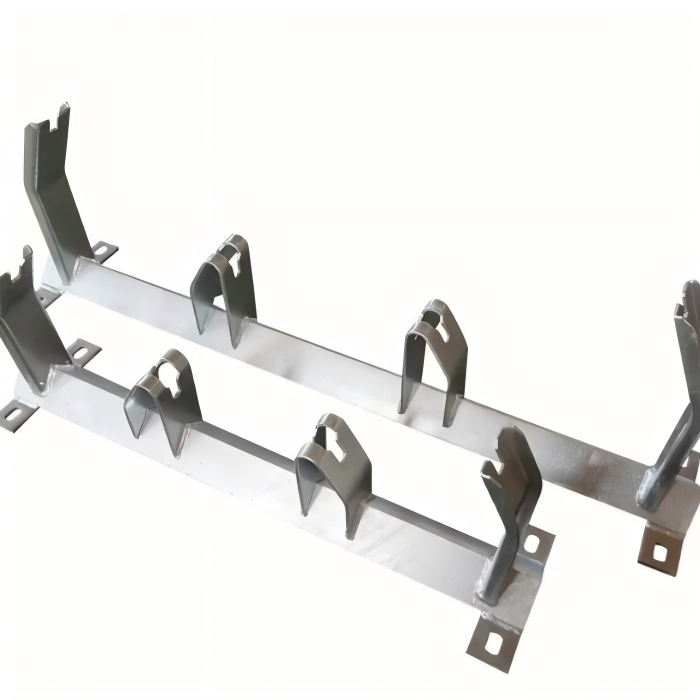

A: Yes. We can weld mounting brackets for troughing rollers, return rollers, impact rollers, and self aligning rollers. We just need your roller specifications and desired spacing.
