Custom Fabricated Metal Stamping Plates Shaped into Reinforced Geometries for Industrial Assembly and Structural Support
Request a Quote
Enter the quantity you need and add to your quote list for pricing inquiries.
Product Details

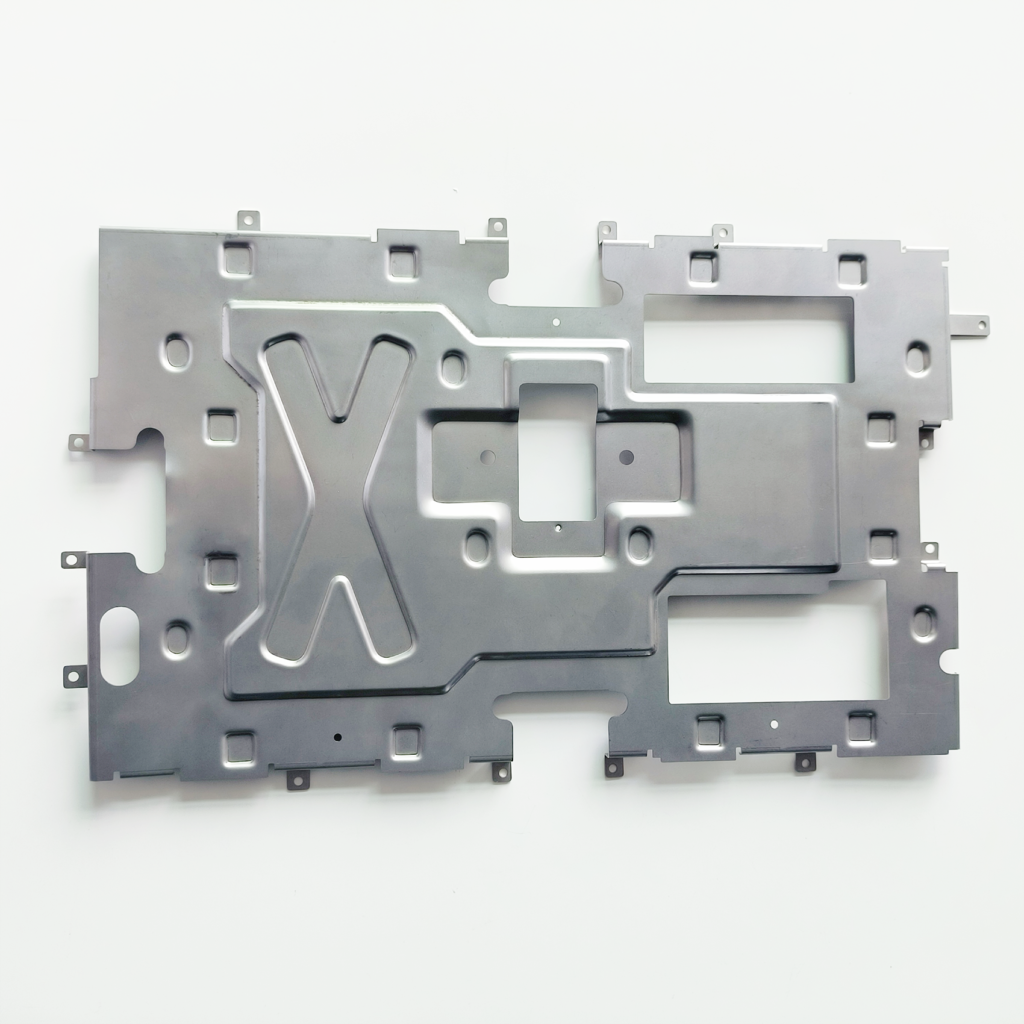

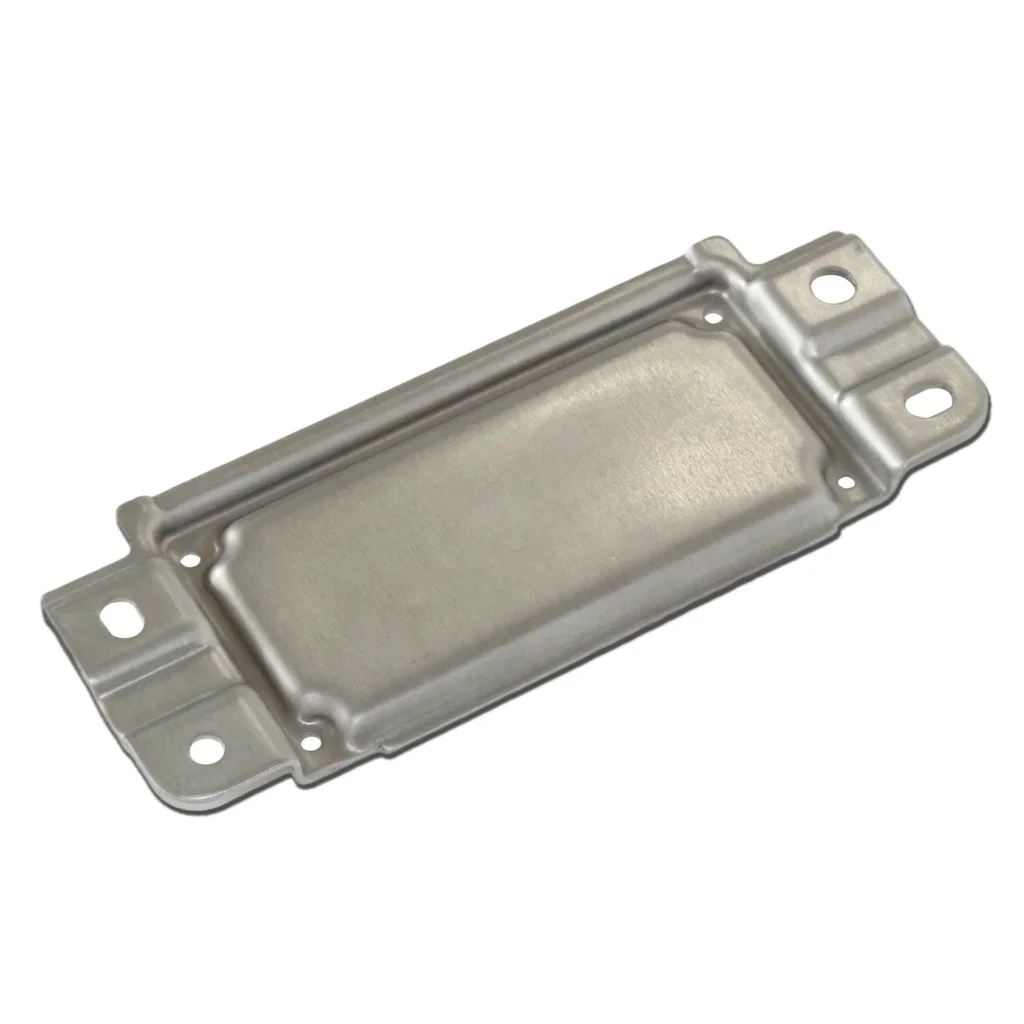

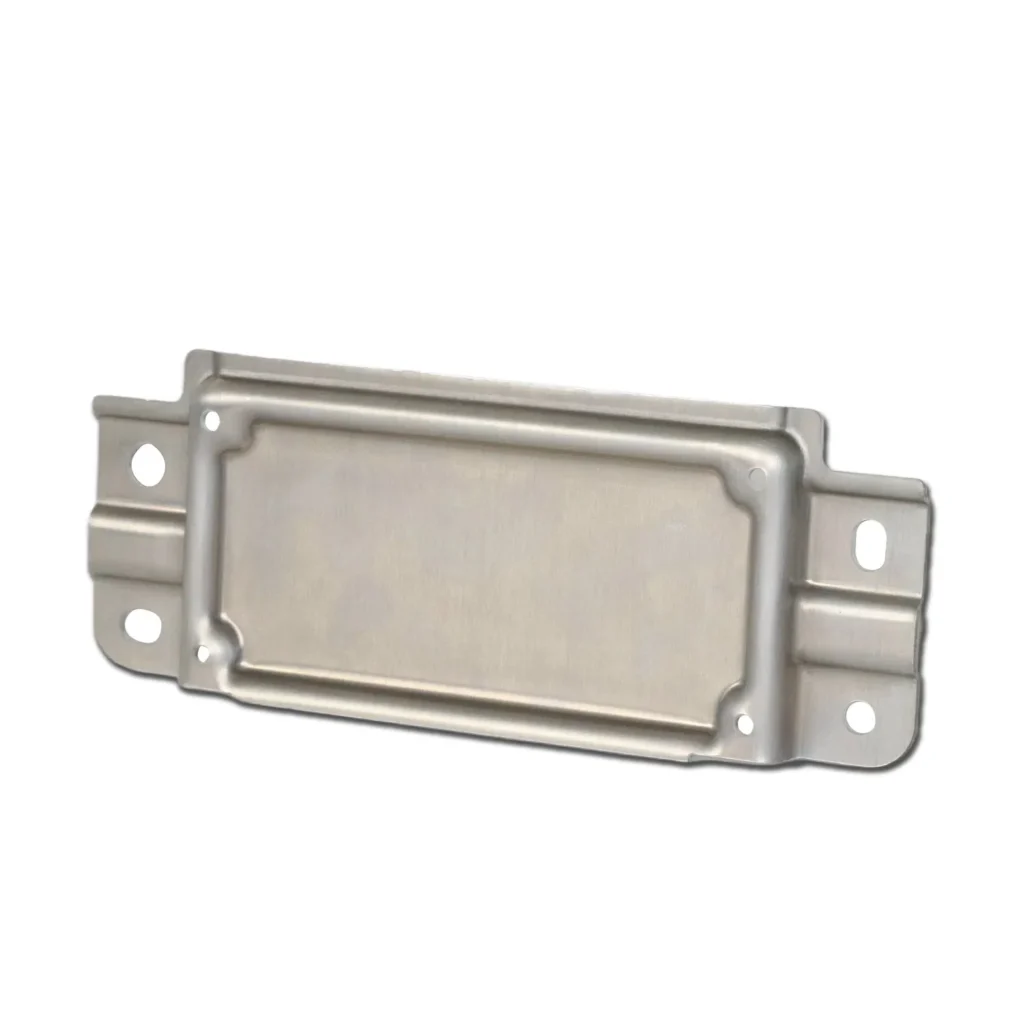

What Are Metal Stamping Plates?
Metal stamping plates are flat or pre-formed metal components manufactured through a high-precision metal stamping process. This process uses stamping dies and high-tonnage presses to shape, cut, punch, or form sheet metal into specific geometries. Unlike simple cut plates, metal stamping plates can include complex features such as holes, bends, embossing, ribs, slots, and fine structural details—all produced in a single or multi-stage stamping operation.
These parts are widely used in industries that require high repeatability, tight tolerances, and cost-efficient mass production, such as automotive systems, electronics, machinery equipment, construction hardware, and industrial assemblies.
Materials Used in Metal Stamping Plates:
Metal stamping plates can be manufactured from a wide range of metals depending on performance requirements:
- Stainless Steel (304, 316): corrosion resistance and durability
- Carbon Steel (1010, 1020, 1045): strength and cost efficiency
- Aluminum Alloys (5052, 6061): lightweight and corrosion-resistant
- Copper & Brass: conductivity and decorative applications
- Spring Steel: elasticity and fatigue resistance
Material selection directly influences strength, weight, corrosion resistance, and formability.
Metal Stamping Process Overview:
The production of metal stamping plates typically involves:
- Blanking – Cutting raw sheet metal into required shapes
- Punching – Creating holes, slots, or openings
- Bending/Forming – Shaping edges or 3D structures
- Deep Drawing (optional) – Forming deeper cavities
- Trimming & Finishing – Refining edges and dimensions
- Surface Treatment – Plating, anodizing, powder coating, or polishing
Advanced tooling ensures consistent accuracy even in large-volume production.
Key Advantages of Metal Stamping Plates:
Metal stamping plates offer several industrial advantages:
1. High Production Efficiency:
Once tooling is created, thousands to millions of identical parts can be produced quickly.
2. Tight Tolerances:
Precision dies ensure repeatability and dimensional accuracy.
3. Cost-Effective Mass Production:
Lower per-unit cost compared to CNC machining for high volumes.
4. Material Optimization:
Minimal waste due to optimized sheet nesting.
5. Design Flexibility:
Supports complex geometries and integrated structural features.
Applications of Metal Stamping Plates:
Metal stamping plates are used across a wide range of industries:
- Automotive brackets, chassis plates, reinforcement plates
- Electrical enclosures and grounding plates
- Machinery mounting and structural support plates
- Communication equipment internal frames
- Medical device structural components
- Furniture connectors and load-bearing plates
- Industrial equipment assembly parts
Their versatility makes them a core component in modern manufacturing systems.
Surface Finishing Options:
To enhance performance and appearance, metal stamping plates may undergo:
- Zinc/Nickel plating for corrosion resistance
- Anodizing (for aluminum plates)
- Powder coating for durability and color options
- Electropolishing for smooth finish
- Passivation for stainless steel protection
Surface treatment improves both functional life and aesthetic value.
Quality Control and Manufacturing Standards:
High-quality metal stamping plates require strict quality control:
- Incoming material inspection
- Progressive die validation
- Dimensional measurement (CMM inspection)
- Flatness and tolerance testing
- Surface defect inspection
- Batch consistency control
This ensures stable performance in critical industrial applications.
Case Study – Flow Wing Metal Precision Stamping Solution
At Flow Wing Metal, we recently supported a European industrial equipment manufacturer requiring high-strength metal stamping plates for an automated assembly system.
Customer Challenge:
The client needed:
- High-volume production (50,000+ pcs/month)
- Tight flatness tolerance within ±0.05mm
- Strong corrosion resistance for outdoor environments
- Stable interlocking structure for assembly automation
Our Solution:
Flow Wing Metal developed a progressive die stamping solution using high-strength carbon steel with optimized grain direction control. We also implemented:
- Multi-stage stamping die design
- CNC precision tooling for die accuracy
- Zinc-nickel surface coating for corrosion resistance
- 100% dimensional inspection for first production batch
Result:
- Production efficiency improved by 35%
- Scrap rate reduced below 1.2%
- Assembly compatibility achieved 100% pass rate
- Customer successfully scaled product line to mass production
This project demonstrated our capability in delivering high-precision metal stamping plates for demanding industrial applications.
Why Choose Flow Wing Metal for Metal Stamping Plates?
- Advanced progressive die stamping technology
- In-house CNC tooling and mold design
- ISO-certified quality system
- Support for low-volume prototyping to mass production
- Strong engineering customization capability
- Global export experience
We specialize in transforming engineering drawings into reliable, scalable metal components.
