What Is a Cooling Plate Electric?

A cooling plate electric is a flat, thermally conductive device that removes heat from electronic components through conduction to an integrated liquid coolant channel or directly to ambient air. Unlike a simple heat sink that relies solely on natural convection, the cooling plate electric can be liquid-cooled for high-power applications or fan-cooled for medium-power applications. It is typically mounted directly to heat-generating components using thermal interface material to minimize thermal resistance.

The cooling plate electric is characterized by its flat mounting surface, integrated flow channels (for liquid versions), and high thermal conductivity. Typical features include a smooth, flat mounting surface for component attachment, internal liquid channels for coolant flow, inlet and outlet ports for hose connections (liquid type), fin arrays for air cooling (passive type), and threaded inserts or mounting holes for secure attachment. Thicknesses typically range from 2mm to 20mm, with custom sizes available. The cooling plate electric prevents overheating, extends component life, and enables higher power densities in modern electronics.

How a Cooling Plate Electric Works:

The cooling plate electric operates on the principle of conduction and convection. Heat generated by electronic components conducts through the thermal interface material into the cooling plate base. For liquid-cooled versions, heat then transfers to the coolant flowing through internal channels. The coolant carries heat away to a remote radiator where it is dissipated to the environment. For air-cooled versions, heat transfers to fin surfaces and dissipates into the ambient air, either by natural convection or forced airflow from a fan.

The cooling capacity of a cooling plate electric depends on several factors: flow rate determines how much coolant passes through the plate per minute, coolant temperature affects the temperature difference driving heat transfer, channel geometry influences the heat transfer coefficient and pressure drop, and base material thermal conductivity determines how quickly heat spreads from the component to the coolant. Advanced designs use turbulators or pin fins to enhance heat transfer and improve thermal performance.

Why Choose Custom CNC Machined Cooling Plate Electric?

Off-the-shelf cooling plates may not always fit your specific application. Standard sizes, channel configurations, or materials may not align with your thermal requirements. Custom CNC machined cooling plate electric components provide the perfect solution for applications demanding precise thermal management.

With CNC machining, every aspect of the cooling plate electric can be customized to your exact specifications. The size can be matched to your component footprint. The channel configuration can be optimized for your flow rate and pressure drop requirements. The material can be selected for thermal conductivity, weight, and corrosion resistance. The mounting pattern can be tailored to your equipment. Additional features such as O-ring grooves, threaded inserts, or mounting holes can be added.

Our CNC machining process ensures that each cooling plate electric achieves tight tolerances, typically within ±0.05mm, with excellent surface finish and consistent quality across every part, from prototypes to high-volume production runs.

Materials for Custom Cooling Plate Electric:

The choice of material for a cooling plate electric depends on thermal conductivity, weight, and cost requirements.

Aluminum is the most common material for cooling plates. Alloys 6061 and 6063 offer good thermal conductivity (200-220 W/m·K), lightweight construction, excellent machinability, and corrosion resistance. Anodizing can provide additional surface protection. Aluminum cooling plates are suitable for most applications including EV batteries, inverters, and power supplies.

Copper provides superior thermal conductivity (approximately 400 W/m·K). Copper offers better heat spreading than aluminum, allowing more uniform temperature distribution across the plate. Copper is heavier and more expensive than aluminum. Copper cooling plates are suitable for high-power-density applications like laser diodes and high-end IGBT modules.

Aluminum-Copper Hybrid combines a copper base for heat spreading with aluminum body for weight reduction. This design offers the thermal performance of copper where it matters most while keeping overall weight reasonable. Suitable for applications requiring both high performance and weight savings.

Types of Cooling Plate Electric:

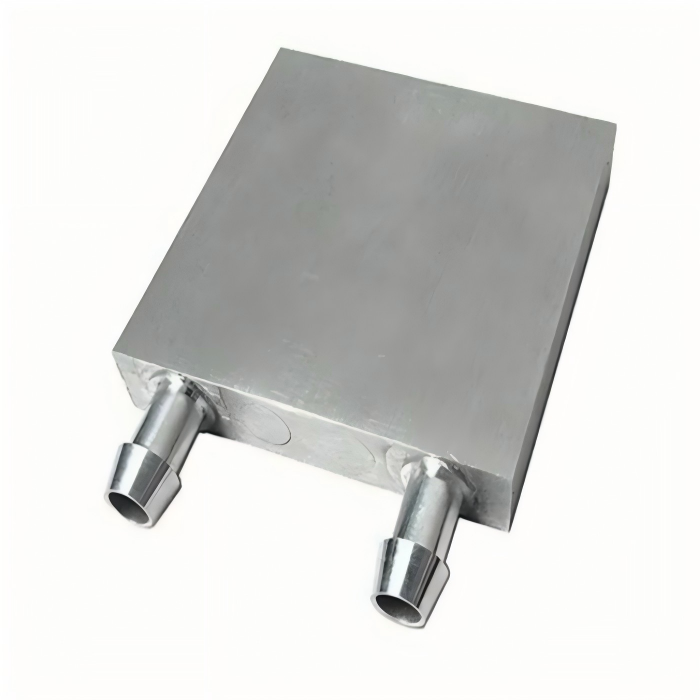

Liquid Cooling Plate:

A cooling plate electric with internal channels for liquid coolant (water-glycol or dielectric fluid). This type offers the highest cooling capacity and is suitable for EV batteries, inverters, and high-power IGBTs where heat loads exceed 500W.

Air Cooling Plate:

A cooling plate electric with integrated fins for air cooling. This type offers lower cooling capacity than liquid versions but requires no liquid handling equipment. Suitable for lower power applications or where liquid cooling is impractical.

Active Cooling Plate:

A cooling plate electric with integrated fan or thermoelectric cooler (Peltier device). Provides cooling independent of system airflow. Suitable for enclosed electronics where ambient air is not available.

Passive Cooling Plate:

A cooling plate electric relying on natural convection or conduction to a chassis. No moving parts and no power consumption. Suitable for low-power, low-cost applications.

Electric Vehicle Batteries:

Cooling plates are placed between battery cells or under battery modules to remove heat during fast charging and high-current discharge. Proper thermal management maintains cell temperature for safety, longevity, and performance.

EV Inverters and Converters:

Cooling plates mount under power modules to dissipate heat from IGBTs and MOSFETs. Effective cooling enables higher current output without overheating, improving vehicle performance.

Industrial Drives:

Cooling plates cool power electronics in variable frequency drives and servo amplifiers. Improved cooling enhances reliability in continuous industrial operation.

Power Supplies:

Cooling plates remove heat from switching transistors and diodes in high-power AC-DC and DC-DC converters, enabling compact power supply designs.

Laser Diodes:

Cooling plates stabilize laser diode temperature for consistent wavelength and output power. Copper plates provide rapid heat removal for high-power laser applications.

LED Lighting:

Cooling plates cool high-power LED arrays in stadium lights, automotive headlamps, and grow lights, extending LED life and maintaining light output.

Our CNC Machining Capabilities:

Our facility is equipped with advanced CNC machining centers capable of producing cooling plates to the highest standards. We offer precision milling, drilling, and channel machining. We can create complex channel geometries including serpentine, parallel, and custom flow paths. Our quality control includes dimensional inspection, flatness verification, and pressure testing.

Frequently Asked Questions:

Q: What is a cooling plate electric used for?

A: A cooling plate electric dissipates heat from electronic components like IGBTs, power modules, LEDs, and batteries to maintain optimal operating temperatures.

Q: What materials are cooling plates made from?

A: Cooling plates are typically made from aluminum or copper. Aluminum offers good thermal conductivity with light weight. Copper provides maximum thermal performance.

Q: What is the difference between liquid and air cooling plates?

A: Liquid cooling plates use circulating coolant for high heat removal capacity (500W to 10kW). Air cooling plates use fins and fans for moderate cooling (50W to 500W).

Q: What flow rates can you support?

A: We can design cooling plates for flow rates from 2 LPM to 20 LPM or more, depending on your application requirements.

Q: What tolerances can you hold?

A: We hold tight tolerances on all critical dimensions including flatness (±0.05mm), channel dimensions, and mounting hole locations.

Conclusion:

A cooling plate electric is a critical component for thermal management in high-power electronic applications. When off-the-shelf options do not meet your needs, custom CNC machined cooling plates provide the perfect solution.
