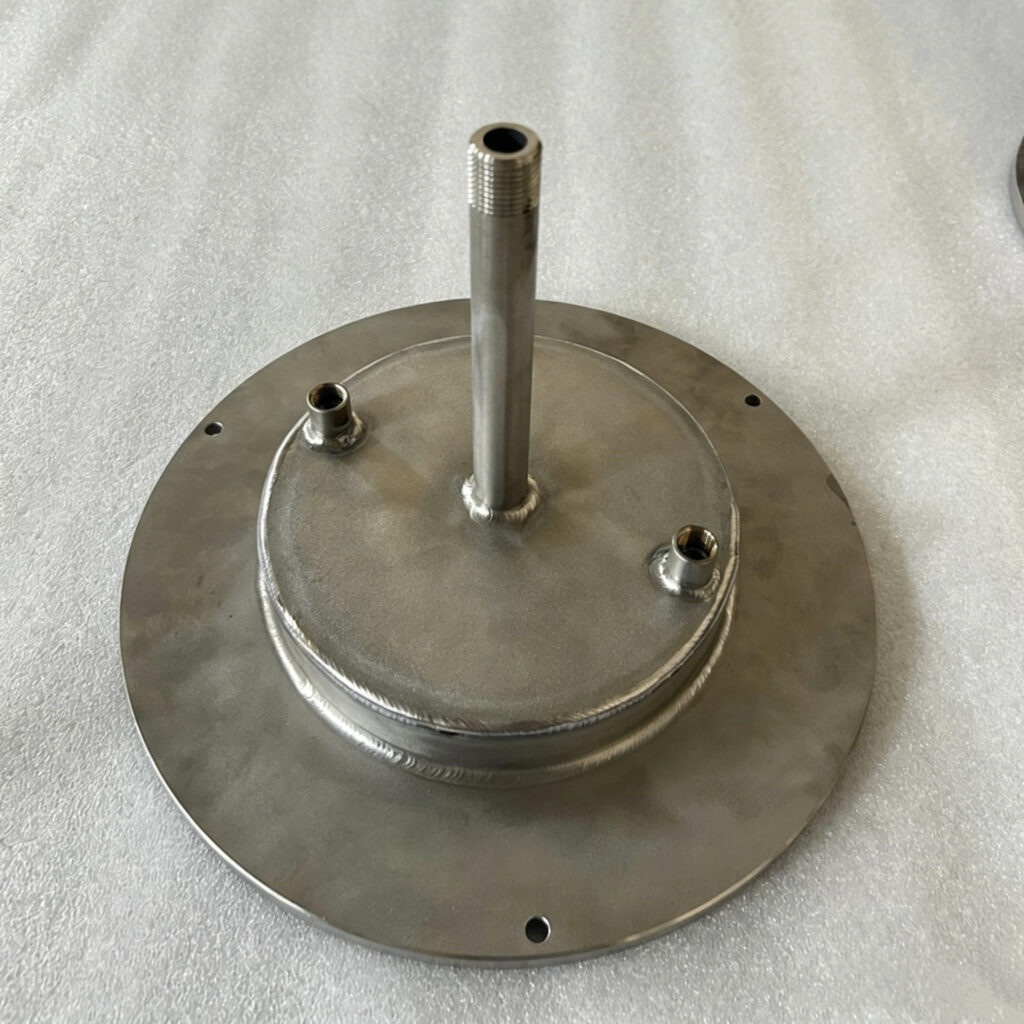

Flange Assembly TIG Welded Titanium Custom Multi-Thread Nozzle Cover
TIG Welded Titanium Flange Assembly features custom multi-thread nozzle fabrication and precision flange cover design for corrosion-resistant industrial applications.
Request a Quote
Enter the quantity you need and add to your quote list for pricing inquiries.
Product Details
What Is a Titanium Flange Assembly?
A flange assembly is a precision-engineered mechanical component that combines one or more flanges with welded pipes, threaded connections, covers, or customized structural parts to create a reliable connection system between different sections of industrial equipment or piping systems.
Unlike standard flange components, a custom titanium flange assembly is manufactured according to specific engineering requirements, including dimensional accuracy, pressure resistance, corrosion performance, and installation conditions. It is commonly used in demanding industries where lightweight construction, chemical resistance, and long service life are critical.
The TIG Welded Titanium Flange Assembly integrates high-performance titanium material with advanced tungsten inert gas (TIG) welding technology, providing excellent weld quality, smooth appearance, and superior mechanical reliability. This type of fabricated flange assembly is ideal for applications requiring clean processing environments, aggressive chemical resistance, and precision fluid control.
Premium Titanium Flange Assembly for Custom Industrial Applications:
Flow Wing Metal specializes in manufacturing custom titanium flange assemblies, including multi-thread nozzle flange covers, welded titanium pipe assemblies, and precision-machined flange components.
This product features a combination of:
- High-strength titanium alloy construction
- Precision CNC machined flange surfaces
- TIG welded joints with excellent integrity
- Custom multi-thread nozzle design
- Smooth brushed surface finishing
- Lightweight and corrosion-resistant structure
The assembly is designed for customers who require a high-performance connection solution beyond standard catalog flange products.
Titanium Material Advantages:
Titanium is widely recognized as one of the most advanced engineering metals due to its outstanding combination of strength, corrosion resistance, and low density.
Common titanium grades used for flange assemblies include:
Grade 2 Titanium (Commercially Pure Titanium):
Grade 2 titanium is one of the most widely used titanium materials for industrial fabrication. It provides:
- Excellent corrosion resistance
- Superior weldability
- Good mechanical strength
- High chemical stability
- Long operational lifespan
Grade 5 Titanium (Ti-6Al-4V):
Grade 5 titanium alloy offers higher strength and is suitable for applications requiring enhanced mechanical performance.
Key advantages include:
- High tensile strength
- Excellent fatigue resistance
- Lightweight structure
- Superior durability
The titanium material selection can be customized according to operating temperature, pressure requirements, and application environment.
Advanced TIG Welding Process for Reliable Flange Assemblies:
TIG welding is a preferred manufacturing process for titanium flange assemblies because it provides precise heat control and produces clean, high-quality weld seams.
During titanium TIG welding, shielding gas protection is essential to prevent oxidation and maintain weld performance. Flow Wing Metal applies professional welding control procedures to ensure:
- Stable welding penetration
- Minimal deformation
- Smooth weld appearance
- Strong mechanical connection
- Excellent leak resistance
Compared with traditional welding methods, TIG welding provides better control for thin-wall titanium components and complex fabricated assemblies.
Multi Thread Nozzle Flange Cover Design:
The custom multi-thread nozzle flange cover design provides additional connection flexibility for specialized equipment and piping systems.
Its advantages include:
Customized Thread Configurations:
Different thread standards, sizes, and orientations can be manufactured according to customer drawings, including metric and imperial thread specifications.
Integrated Flange Structure:
The flange and nozzle cover are fabricated as one assembly, reducing installation complexity and improving connection reliability.
Precision Machined Surfaces:
CNC machining ensures accurate:
- Bolt hole patterns
- Thread dimensions
- Sealing surfaces
- Alignment features
This helps achieve better assembly performance and reduces installation issues.
Surface Finishing Options:
To meet different application requirements, Flow Wing Metal provides multiple surface finishing solutions:
- Brushed titanium surface
- Polished titanium finish
- Sand blasting
- Precision machining finish
- Customized surface treatment
A brushed finish improves appearance consistency while helping maintain a clean industrial appearance.
Custom Titanium Fabrication Capability:
Every titanium flange assembly can be customized based on customer drawings, CAD models, or technical specifications.
Our manufacturing capabilities include:
- CNC machining
- TIG welding
- Tube fabrication
- Precision turning
- Thread machining
- Surface finishing
- Dimensional inspection
Flow Wing Metal supports prototype development, small batch production, and volume manufacturing for customized titanium components.
Typical customization options include:
- Flange diameter
- Thickness
- Bolt hole patterns
- Thread type
- Nozzle dimensions
- Welding structure
- Surface requirements
Applications of Titanium Flange Assembly:
Due to its excellent performance, titanium flange assemblies are widely used in industries such as:
Chemical Processing Equipment:
Titanium provides outstanding resistance against corrosive chemicals, making it suitable for chemical handling systems.
Semiconductor and Vacuum Equipment:
High cleanliness and precision requirements make titanium flange assemblies suitable for advanced industrial equipment.
Marine Applications:
Titanium offers excellent resistance against seawater corrosion and harsh marine environments.
Medical and Laboratory Equipment:
Titanium’s biocompatibility and chemical stability make it suitable for specialized equipment applications.
Aerospace and High Performance Engineering:
The lightweight and strong characteristics of titanium support demanding aerospace applications.
Flow Wing Metal Case Study: Custom Titanium Flange Assembly Manufacturing Project
A customer from the industrial equipment sector required a customized titanium flange assembly for a corrosion-resistant fluid connection system.
The original design required:
- Titanium Grade 2 material
- Custom flange dimensions
- Multi-thread nozzle structure
- TIG welded connection
- Precision sealing surface
- Consistent dimensional accuracy
Manufacturing Solution:
Flow Wing Metal developed a complete manufacturing process:
- Material verification with titanium mill certificates
- CNC machining of flange and threaded components
- Precision TIG welding under controlled shielding conditions
- Surface brushing treatment
- Dimensional inspection using professional measuring equipment
Project Results:
The final titanium flange assemblies achieved:
- Stable welding quality
- Accurate thread positioning
- Excellent corrosion resistance
- Reliable installation performance
The customer successfully integrated the components into their equipment system and continued cooperation with Flow Wing Metal for additional customized titanium fabrication projects.
Why Choose Flow Wing Metal for Titanium Flange Assembly?
Flow Wing Metal provides complete custom metal manufacturing solutions with experience in precision CNC machining and welded assemblies.
Our advantages include:
✔ Custom titanium fabrication capability
✔ Experienced TIG welding engineers
✔ CNC machining support
✔ Strict quality inspection
✔ Small batch and production capability
✔ OEM/ODM manufacturing service
From prototype development to mass production, Flow Wing Metal helps global customers transform complex designs into reliable metal components.
Frequently Asked Questions (FAQ):
1. What is a titanium flange assembly?
A titanium flange assembly is a fabricated connection component combining titanium flanges, welded structures, threaded nozzles, or covers to create a durable industrial connection system.
2. Why choose titanium instead of stainless steel for flange assemblies?
Titanium provides better corrosion resistance, lower weight, and excellent durability compared with many stainless steel alternatives, especially in chemical and marine environments.
3. What titanium grades are available?
Common materials include Grade 2 titanium and Grade 5 titanium alloy (Ti-6Al-4V). Other titanium grades can be supplied according to project requirements.
4. What welding method is used for titanium flange assemblies?
TIG welding is commonly used because it provides accurate heat control, clean welds, and high-quality joints for titanium fabrication.
5. What inspection methods are available?
Inspection options include dimensional inspection, thread inspection, material certification verification, and customized quality reports.
6. What is the production lead time for custom titanium flange assemblies?
Production time depends on design complexity and quantity. Prototype and small batch orders typically require shorter lead times after drawing confirmation.
