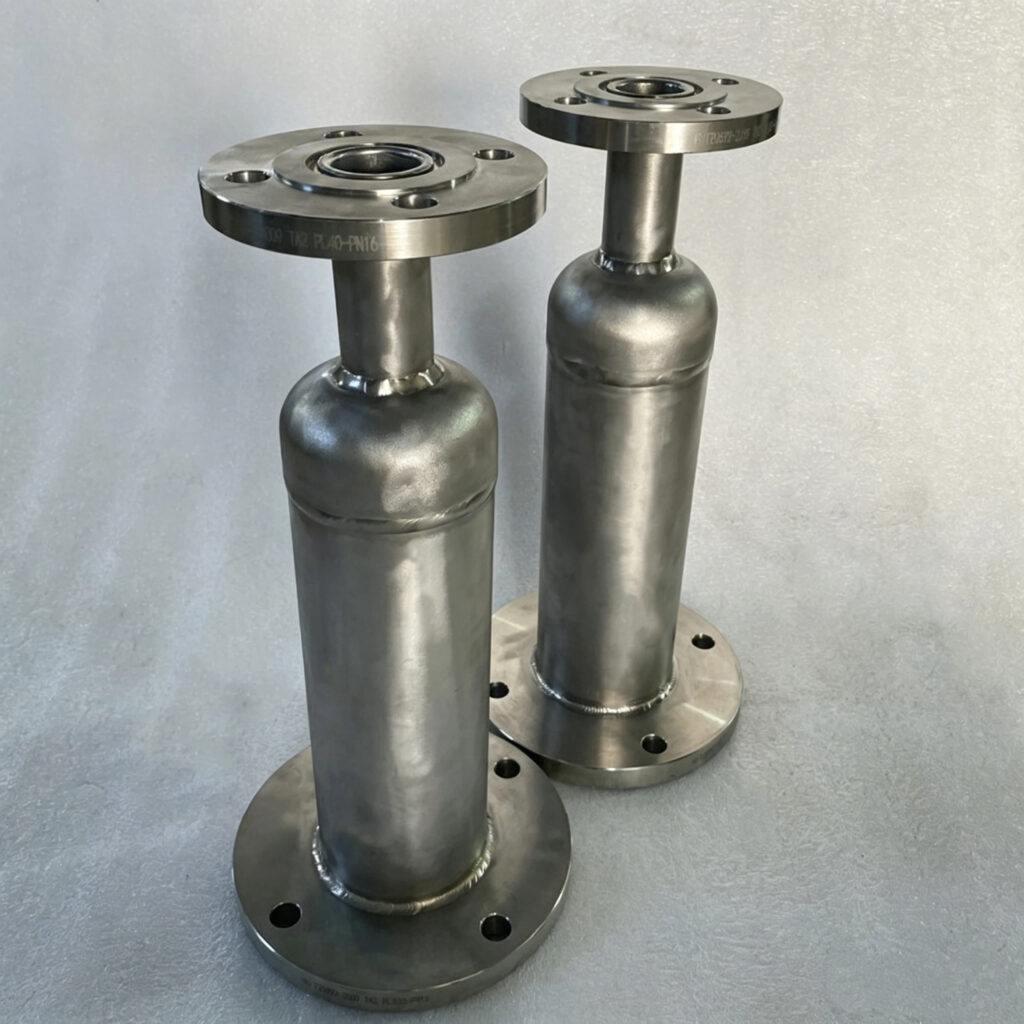

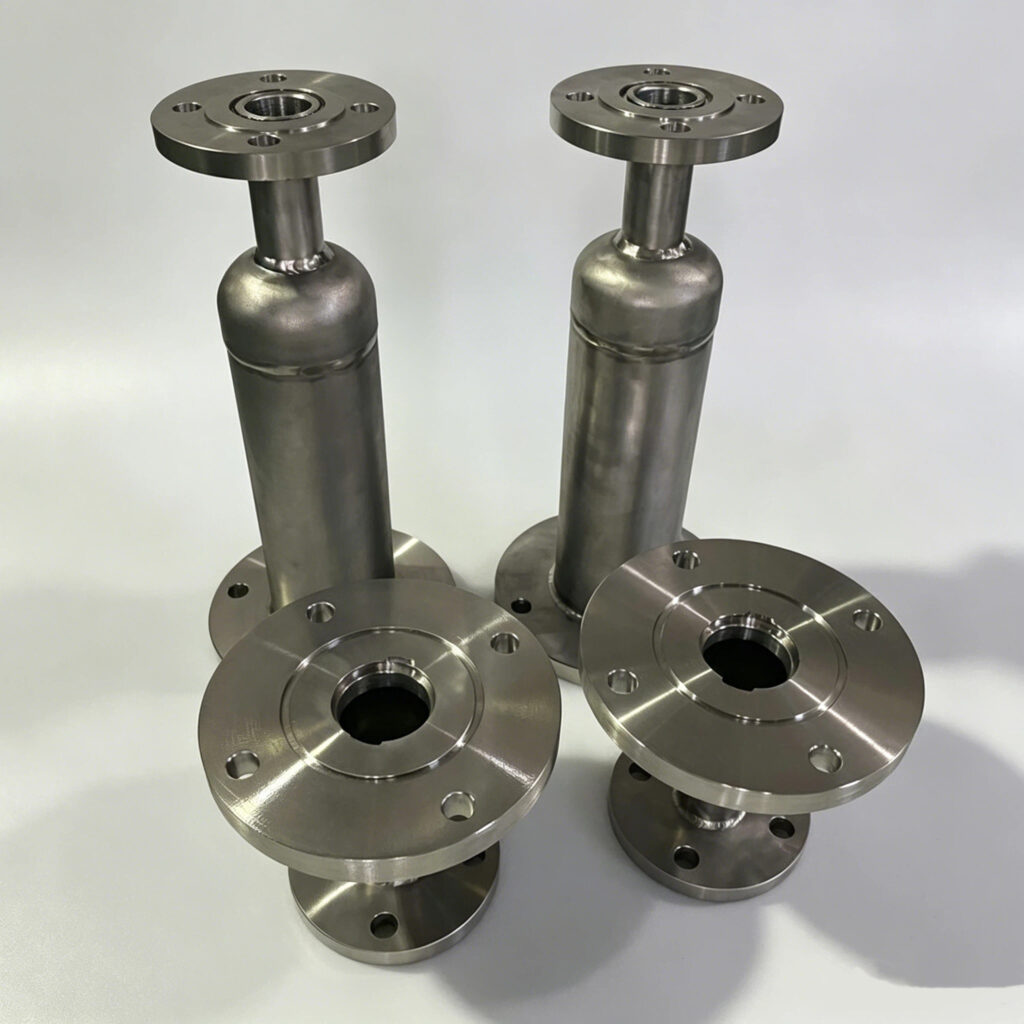

What Is a Flanged Reducer?

A flanged reducer is a specialized piping component designed to connect two pipelines or equipment ports with different diameters while maintaining a secure, leak-free flange connection. It ensures smooth fluid transition, minimizes turbulence, and helps maintain stable pressure throughout the piping system.

Compared with threaded or socket-type reducers, flanged reducers offer easier installation, superior sealing performance, and convenient maintenance, making them widely used in industrial process systems requiring frequent inspection or disassembly.

When manufactured from Grade 2 titanium, flanged reducers become an ideal solution for highly corrosive environments where stainless steel or carbon steel may fail over time. Titanium’s outstanding corrosion resistance, lightweight strength, and long service life make it particularly suitable for magnetic water treatment equipment, chemical processing, desalination, marine engineering, and high-purity fluid systems.

Key Features:

Superior Grade 2 Titanium Material:

Grade 2 titanium provides outstanding resistance to:

• Chloride corrosion
• Seawater corrosion
• Oxidizing acids
• Salt solutions
• Industrial chemicals
• Atmospheric corrosion

Unlike conventional stainless steel, titanium forms a stable oxide layer that continuously protects the material from aggressive environments.

Precision TIG Welded Construction:

Professional TIG welding offers:

• Clean and smooth weld appearance
• Excellent weld strength
• Minimal heat affected zone
• Low distortion
• High structural integrity
• Consistent quality throughout production

Every welded joint is inspected to ensure dependable performance in demanding industrial environments.

CNC Machined Flanges:

Precision CNC machining guarantees:

• Accurate flange dimensions
• Flat sealing surfaces
• Excellent bolt hole alignment
• Tight tolerance control
• Easy installation
• Reliable gasket sealing

These precision-machined flanges significantly reduce installation time while improving system reliability.

Optimized Flow Transition:

The carefully designed reducing section allows fluids to transition smoothly between different pipe sizes.

Benefits include:

• Reduced pressure loss
• Lower flow turbulence
• Improved flow efficiency
• Reduced vibration
• Enhanced equipment protection

Technical Specifications:

Applications:

This titanium flanged reducer is widely used in:

• Magnetic water treatment equipment
• Chemical processing systems
• Desalination plants
• Marine engineering
• Offshore platforms
• Heat exchanger systems
• Pharmaceutical equipment
• Semiconductor manufacturing
• High-purity water systems
• Industrial process pipelines
• Power generation
• Environmental protection equipment

Its superior corrosion resistance and lightweight properties make it an excellent alternative to stainless steel in harsh operating environments.

Why Choose Grade 2 Titanium?

Compared with stainless steel, Grade 2 titanium offers several significant advantages:

• Outstanding corrosion resistance
• Approximately 40% lighter than steel
• Excellent strength-to-weight ratio
• Long maintenance-free service life
• Reduced lifecycle cost
• Non-magnetic characteristics
• Excellent biocompatibility
• High reliability in aggressive media

For magnetic water treatment systems operating continuously in corrosive environments, titanium significantly reduces downtime and replacement costs.

Manufacturing Advantages at Flow Wing Metal:

At Flow Wing Metal, we specialize in manufacturing custom titanium piping components for industrial applications.

Our capabilities include:

• Precision CNC machining
• Professional titanium TIG welding
• Custom flange manufacturing
• Pipe fabrication
• Precision assembly
• Surface finishing
• Strict dimensional inspection
• Material traceability
• OEM & ODM manufacturing
• Small batch and mass production

Every titanium flanged reducer undergoes rigorous quality inspections to ensure dimensional accuracy, weld integrity, and reliable performance before shipment.

Case Study: Custom Titanium Flanged Reducers for Magnetic Water Treatment Equipment

A manufacturer of industrial magnetic water treatment systems required a series of corrosion-resistant reducers for installations operating with chloride-rich process water. Their previous stainless steel reducers experienced pitting corrosion after extended exposure, leading to leakage, unplanned maintenance, and increased operating costs.

Flow Wing Metal worked closely with the customer’s engineering team to develop a custom Grade 2 titanium flanged reducer featuring precision TIG-welded construction and CNC-machined flanges. We optimized the reducer dimensions to match the existing pipeline layout while ensuring smooth internal flow and accurate flange alignment.

Each component underwent comprehensive dimensional inspection, weld quality verification, and pressure testing before delivery. The finished reducers were installed directly into the customer’s equipment without modification.

Following installation, the customer reported significantly improved corrosion resistance, stable sealing performance, and reduced maintenance requirements. The longer service life of the titanium components helped lower overall operating costs while improving equipment reliability in demanding industrial environments.

This project demonstrates Flow Wing Metal’s expertise in delivering high-quality custom titanium piping solutions tailored to the needs of specialized process equipment manufacturers.

Why Customers Choose Flow Wing Metal?

• Experienced titanium fabrication manufacturer
• Custom designs based on drawings or samples
• Precision CNC machining capability
• Professional titanium TIG welding
• Strict quality management system
• Fast prototype development
• Flexible production quantities
• Competitive factory pricing
• Global export experience
• Reliable technical support

Whether you require a single prototype or high-volume production, Flow Wing Metal provides precision-engineered titanium flanged reducers built to your exact specifications.

Frequently Asked Questions (FAQ):

1. What is the difference between Grade 2 and Grade 5 titanium?

Grade 2 is commercially pure titanium with excellent corrosion resistance, superior weldability, and good ductility, making it ideal for piping systems. Grade 5 (Ti-6Al-4V) offers higher strength but is generally selected for structural or aerospace applications.

2. Can you manufacture according to our drawings?

Yes. Flow Wing Metal specializes in custom manufacturing based on customer drawings, CAD files, or physical samples.

3. Which flange standards are available?

We can manufacture flanges according to ASME, ANSI, DIN, JIS, ISO, EN, GB, or fully customized specifications.

4. What surface finishes can you provide?

Available finishes include brushed, pickled, polished, sandblasted, and customized treatments according to application requirements.

5. Do you perform pressure or weld inspections?

Yes. Depending on customer requirements, we can provide dimensional reports, PMI, weld inspections, pressure testing, and other quality documentation.

6. Is Grade 2 titanium suitable for seawater applications?

Absolutely. Grade 2 titanium offers exceptional resistance to seawater corrosion, making it one of the preferred materials for marine and desalination industries.

7. What industries commonly use titanium flanged reducers?

They are widely used in chemical processing, magnetic water treatment equipment, marine engineering, desalination plants, pharmaceutical production, semiconductor manufacturing, and high-purity fluid systems.

8. Can Flow Wing Metal provide complete titanium pipe assemblies?

Yes. In addition to titanium flanged reducers, we manufacture titanium pipe spools, tees, elbows, flanges, adapters, welded assemblies, and other custom titanium fabrication products.
