What Are Flanged Tee Fittings?

Flanged tee fittings are specialized pipe connection components designed to create a branch connection within a piping system while providing secure and leak-resistant flange interfaces. Unlike standard threaded or socket-weld tees, flanged tee fittings incorporate precision-machined flanges at the connection points, allowing for easier installation, maintenance, inspection, and system modification.

In demanding industries such as chemical processing, marine engineering, offshore platforms, aerospace manufacturing, pharmaceutical production, semiconductor processing, and energy systems, titanium flanged tee fittings are highly valued for their exceptional corrosion resistance, high strength-to-weight ratio, and long service life.

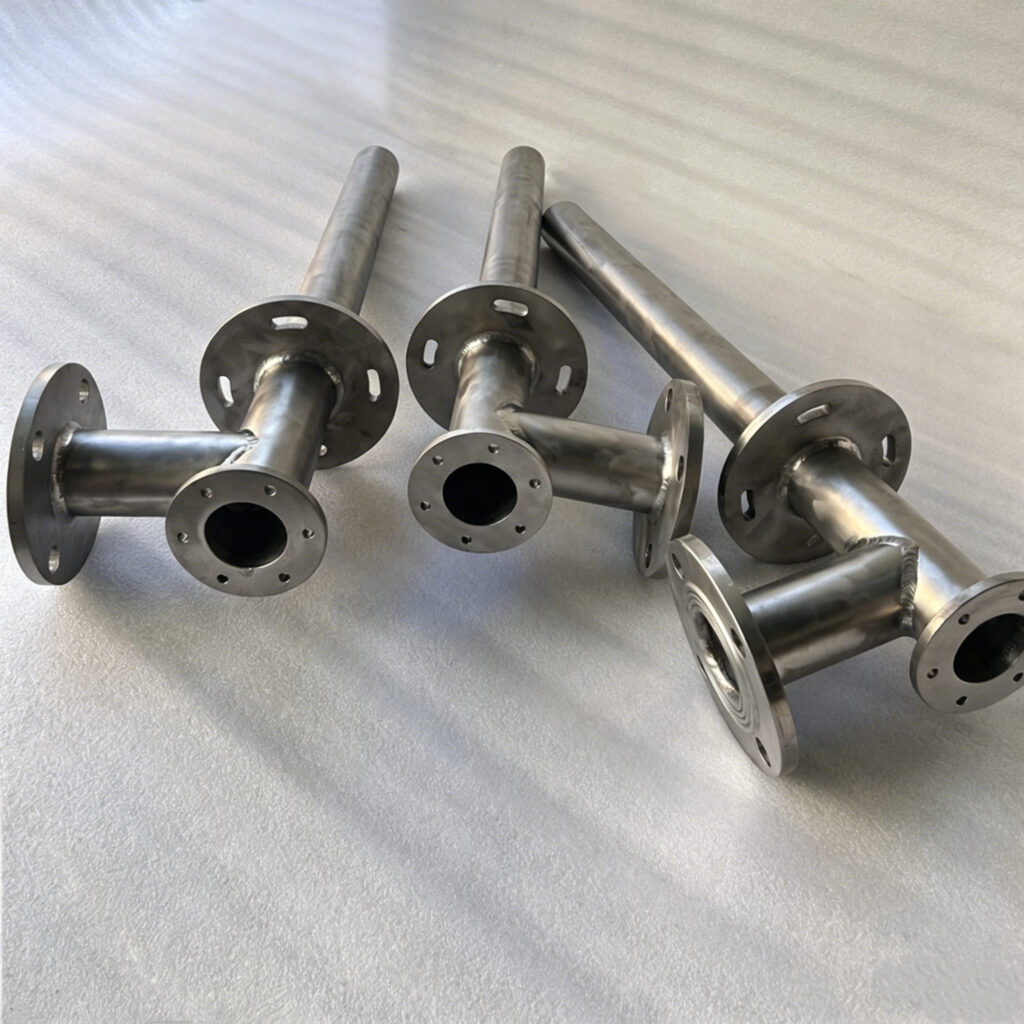

The Titanium Flanged Tee Fittings TIG Welded Brushed Surface Custom Prefabricated Pipe Spool with Precision Machined Flanges combines advanced titanium fabrication, precision CNC machining, and expert TIG welding to deliver a reliable piping solution for critical fluid handling applications.

Why Choose Titanium Flanged Tee Fittings?

Titanium is recognized as one of the most durable and corrosion-resistant engineering metals available today.

Outstanding Corrosion Resistance:

Titanium naturally forms a protective oxide layer that shields the material from aggressive environments, including:

• Seawater
• Chloride-containing solutions
• Chemical processing fluids
• Acidic environments
• High-humidity conditions

This makes titanium flanged tee fittings particularly suitable for marine, offshore, and chemical processing industries where conventional stainless steel may experience corrosion over time.

High Strength with Reduced Weight:

Compared with many traditional metal piping materials, titanium offers exceptional mechanical strength while remaining significantly lighter. This weight reduction helps decrease overall system loads and simplifies installation.

Long-Term Reliability:

Titanium components maintain their structural integrity even after years of exposure to harsh operating conditions, helping reduce maintenance costs and unplanned downtime.

Precision TIG Welding for Superior Joint Integrity:

The performance of a flanged tee fitting depends heavily on weld quality.

At Flow Wing Metal, we utilize advanced TIG (Tungsten Inert Gas) welding techniques to ensure:

• Smooth and uniform weld beads
• Excellent penetration
• Minimal heat distortion
• Reduced contamination risk
• High-strength welded joints

Titanium welding requires strict shielding and process control to prevent oxidation and maintain material properties. Our experienced welding team follows rigorous procedures to achieve clean, aesthetically consistent, and structurally reliable welds.

The result is a prefabricated pipe spool assembly capable of meeting demanding industrial performance requirements.

Brushed Surface Finish Benefits:

This titanium flanged tee fitting features a professional brushed surface finish that provides both functional and visual advantages.

Enhanced Appearance:

The uniform brushed texture creates a clean industrial appearance suitable for high-end processing equipment and visible piping systems.

Improved Surface Consistency:

Brushing helps eliminate minor fabrication marks and creates a consistent finish across the entire assembly.

Easier Maintenance:

Brushed titanium surfaces are easier to clean and maintain, making them ideal for industries with strict cleanliness requirements such as pharmaceutical and food processing facilities.

Precision Machined Flanges:

Accurate flange machining is essential for leak-free system performance.

Our CNC-machined titanium flanges are manufactured to tight tolerances, ensuring:

• Accurate bolt-hole positioning
• Consistent flange flatness
• Reliable gasket sealing
• Improved assembly efficiency
• Excellent dimensional repeatability

Each flange can be produced according to customer drawings, international standards, or project-specific specifications.

Available standards include:

• ANSI/ASME
• DIN
• JIS
• EN
• Custom flange configurations

Custom Prefabricated Pipe Spool Solutions:

Every industrial piping system has unique requirements.

Flow Wing Metal provides fully customized prefabricated titanium pipe spool assemblies featuring:

• Custom tee configurations
• Multiple branch angles
• Various wall thicknesses
• Customized flange types
• Special dimensional requirements
• Project-specific surface treatments

Our engineering team works directly from customer drawings, 3D models, or technical specifications to ensure seamless integration into existing piping systems.

Applications of Titanium Flanged Tee Fittings:

These titanium flanged tee fittings are widely used in:

Chemical Processing Plants:

Ideal for transporting corrosive chemicals and process fluids while maintaining long-term reliability.

Marine and Offshore Systems:

Titanium’s seawater resistance makes it a preferred material for offshore platforms, desalination facilities, and shipbuilding projects.

Pharmaceutical Manufacturing:

Clean surfaces and corrosion resistance support hygienic processing requirements.

Semiconductor Production:

Titanium components help maintain purity standards in ultra-clean fluid systems.

Energy and Power Generation:

Used in heat exchangers, cooling systems, and specialized process pipelines.

Aerospace and Defense:

The combination of lightweight construction and high strength makes titanium suitable for demanding aerospace applications.

Quality Assurance at Flow Wing Metal:

Quality is integrated into every stage of production.

Our manufacturing process includes:

• Raw material verification
• Dimensional inspections
• Welding quality checks
• Surface finish inspection
• Flange tolerance verification
• Final assembly inspection

We support customer requirements for:

• Material certificates
• Dimensional reports
• CMM inspection reports
• Welding documentation
• Custom quality control procedures

Case Study: Custom Titanium Flanged Tee Fittings for a Seawater Processing System

A customer in the marine engineering sector required corrosion-resistant piping assemblies for a seawater circulation project operating in a high-salinity coastal environment.

Traditional stainless steel components previously experienced premature corrosion and frequent maintenance issues.

Flow Wing Metal supplied custom titanium flanged tee fittings featuring:

• Grade 2 titanium construction
• Precision CNC-machined flanges
• Full TIG welded assemblies
• Brushed surface finish
• Customer-specific spool dimensions

After installation, the customer reported:

• Improved corrosion resistance
• Reduced maintenance requirements
• Faster installation due to prefabricated spool design
• Increased operational reliability

The project demonstrated how titanium flanged tee fittings can significantly extend service life while lowering total ownership costs in demanding marine environments.

Frequently Asked Questions (FAQ):

1. What titanium grades are available?

We commonly manufacture flanged tee fittings using Grade 2 titanium and Grade 5 titanium (Ti-6Al-4V), depending on application requirements.

2. Can you produce according to customer drawings?

Yes. We specialize in fully customized manufacturing based on drawings, samples, CAD files, or 3D models.

3. What flange standards can you support?

We can manufacture ANSI, ASME, DIN, EN, JIS, and custom flange standards.

4. Are pressure tests available?

Yes. Pressure testing and additional inspections can be arranged according to project specifications.

5. Can you provide welding documentation?

Yes. Material certificates, inspection reports, and welding-related documentation are available upon request.

6. What industries commonly use titanium flanged tee fittings?

Chemical processing, marine engineering, offshore energy, pharmaceutical manufacturing, semiconductor production, aerospace, and power generation industries frequently utilize titanium flanged tee fittings.

7. What are the advantages of prefabricated pipe spools?

Prefabricated pipe spools reduce on-site welding, shorten installation time, improve dimensional accuracy, and enhance overall project efficiency.
