Professional stainless steel welded tee fittings service for industrial piping fire sprinkler and exhaust systems. Full penetration branch welds with dimensional accuracy. Custom sizes 1 to 10 inches.

What Are Stainless Steel Welded Tee Fittings?

These components are pipe fittings with three openings that allow flow to branch off from a main run at a 90 degree angle. Stainless steel contains at least 10.5 percent chromium, which forms a passive oxide layer on the surface.

Our welding technique uses shielding gas—typically argon or a helium argon mix—to protect the molten weld pool from atmospheric oxygen. This allows the chromium to re form its protective layer as the weld cools. Properly manufactured welded tee fittings will resist rust at the weld line as effectively as the base metal. We also control heat input carefully because too much heat causes chromium carbide precipitation, a condition known as weld decay. By using low heat input and proper technique, we prevent this problem. The result is a seamless, strong, and corrosion proof branch connection that outlasts the surrounding pipe.

Why Professional Welded Tee Fittings Define Piping System Reliability?

Many piping system failures occur not at the straight pipe sections but at the branch connections where a tee fitting joins three directions of flow. A poorly fabricated tee creates stress risers, lack of fusion, or incomplete penetration at the branch joint. These defects are often invisible until the system is pressurized and leaks appear. Over time, thermal cycling and vibration cause cracks to propagate until the component fails completely.

Properly manufactured tee fittings distribute flow evenly while maintaining structural integrity under pressure. The stainless steel base material resists corrosion from process fluids and environmental exposure. Our manufacturing process ensures the branch connection achieves full penetration, preventing the hidden weakness that plagues lower quality components. Additionally, this fitting type is the most efficient method of creating branch connections in stainless steel piping systems.

Our shop has invested in precision cutting equipment, fit-up tooling, and multiple stations to produce each assembly with consistent quality. Automated fixturing ensures correct branch alignment and angle for every unit. For production runs of 50 pieces or more, we recommend automated fabrication. Every tee fittings project we undertake begins with a thorough review of material grade, pressure rating, and end use requirements.

Common Configurations for Welded Tee Fittings:

We offer several configurations for welded tee fittings, each suited for different piping requirements.

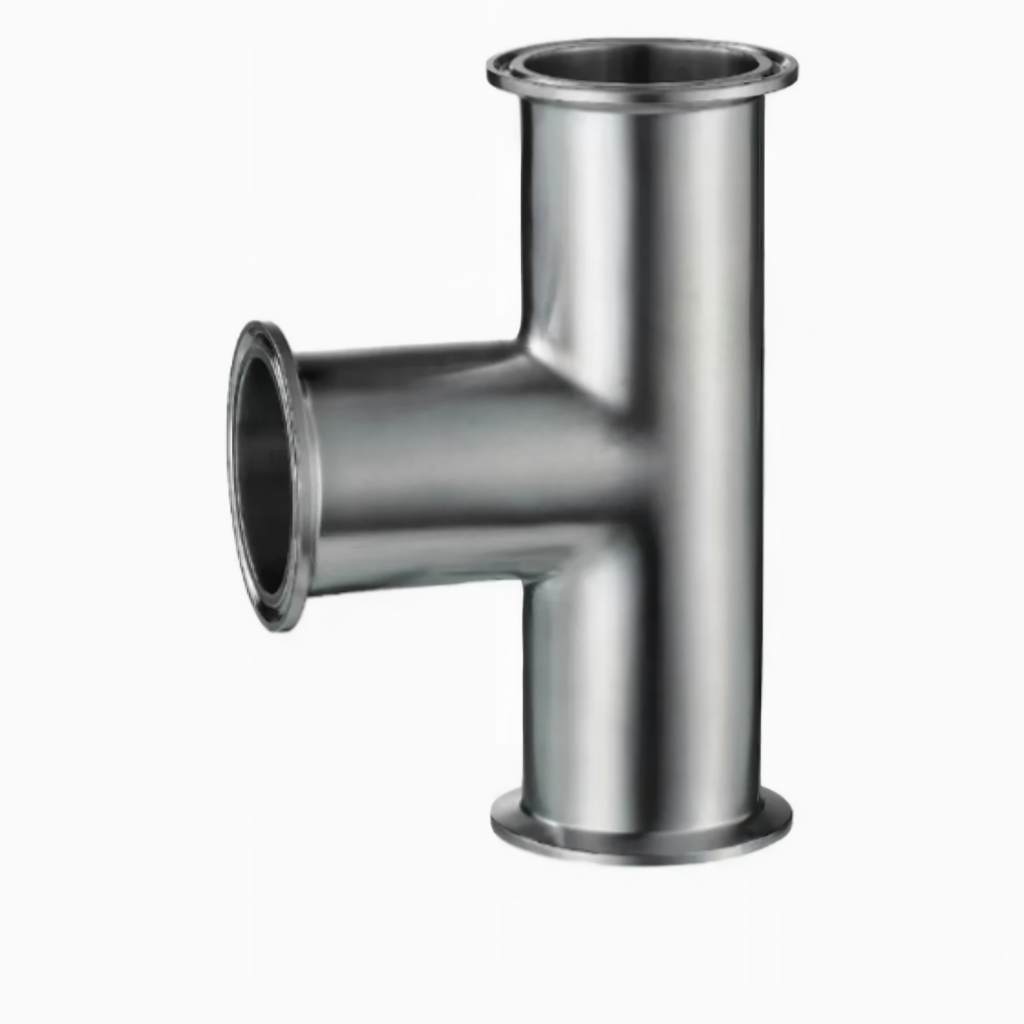

Equal Tee – All Three Openings Same Size:

All three branches have the same diameter. This is the most common configuration for welded tee fittings used in standard plumbing and process piping. The branch is centered on the main run for balanced flow distribution.

Reducing Tee – Branch Smaller Than Main Run:

The branch outlet is smaller than the main run diameter. This configuration for welded tee fittings is used when taking a smaller line off a larger main. Common in water distribution and compressed air systems.

Side Inlet Tee – Branch Offset to One Side:

The branch is located closer to one end of the main run rather than centered. This specialized welded tee fittings design is used in space constrained installations where centering is not possible.

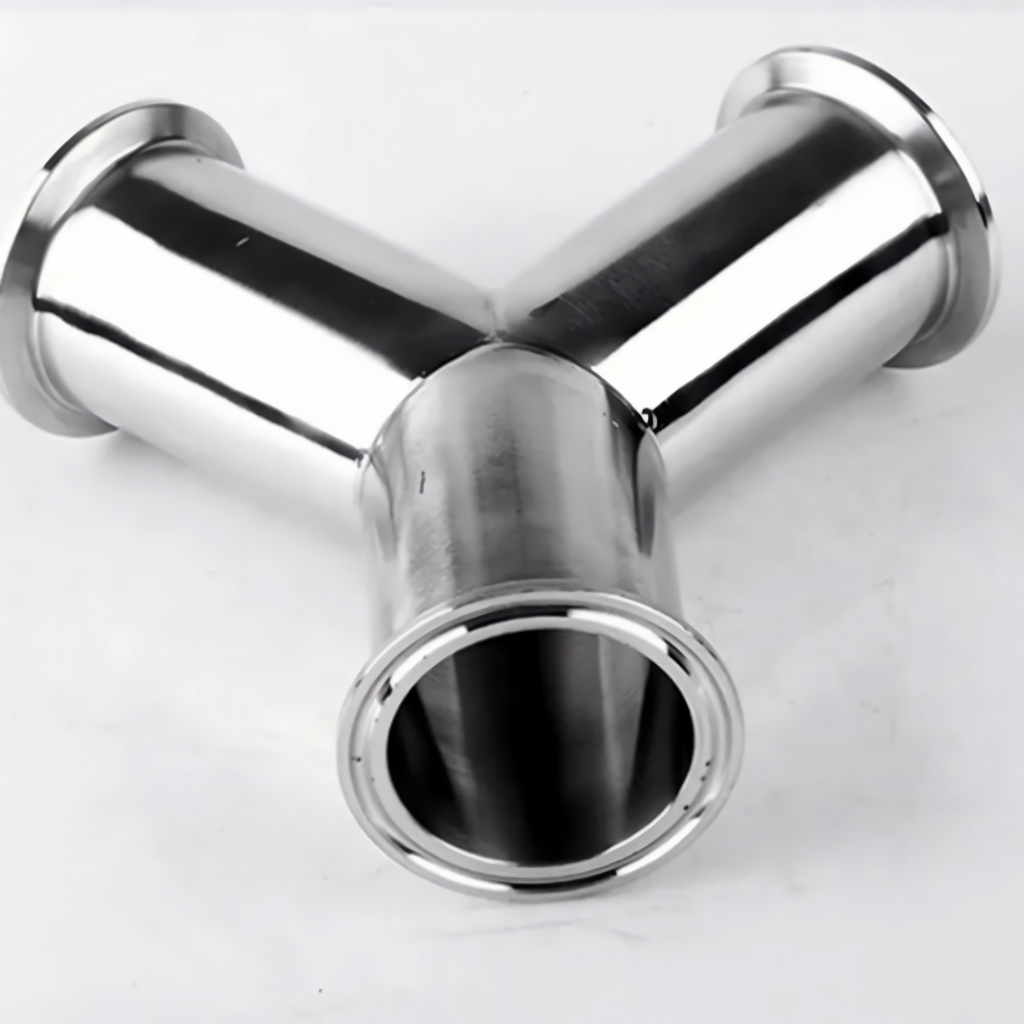

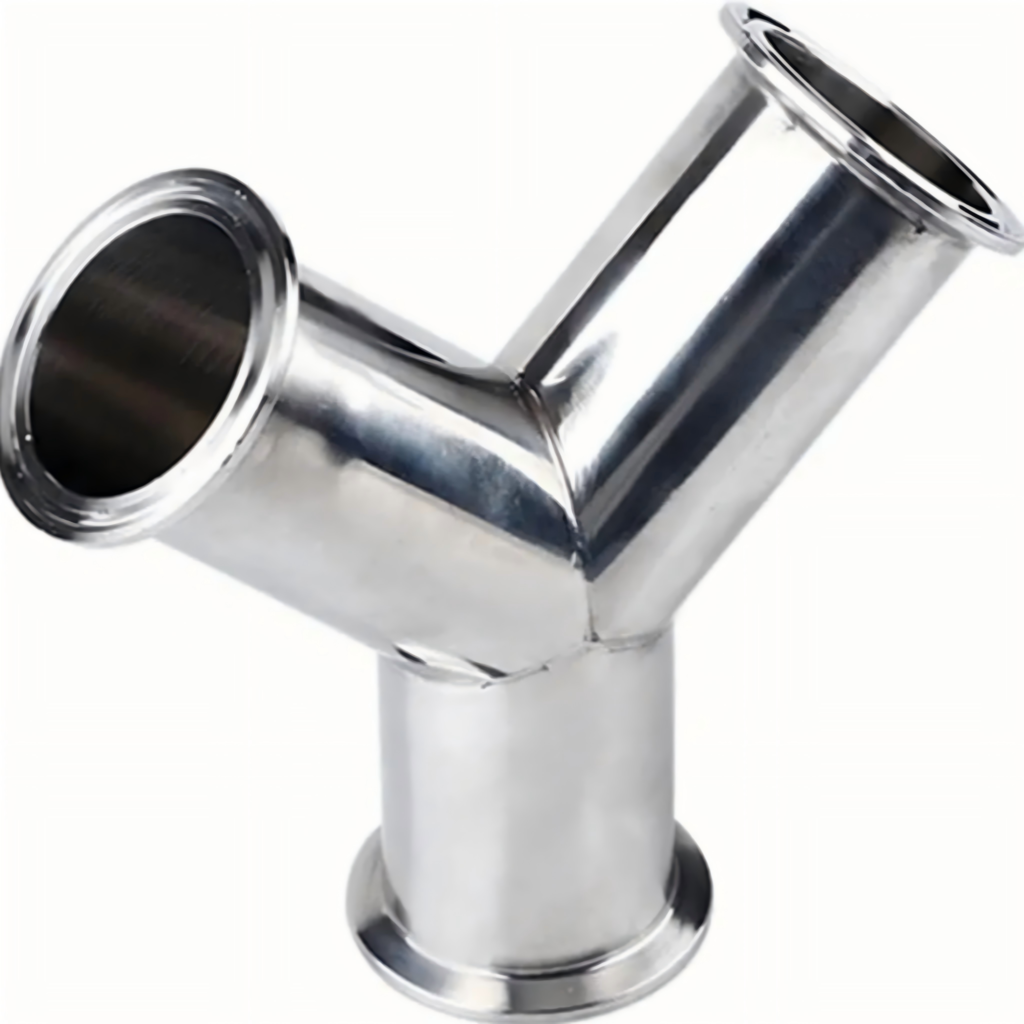

Angled Branch Tee – Branch at Non 90 Degree Angle:

The branch departs the main run at 45 or 60 degrees rather than perpendicular. This welded tee fittings configuration is used in drainage and slurry systems where straight angle connections are preferred.

For each order, we document the configuration so you can reorder identical components.

Branch Hole Preparation Methods:

The quality of any welded tee fittings project starts with proper branch hole preparation in the main pipe. We offer three methods.

Hole Saw Cutting – For Standard Applications:

We use bi metal hole saws to cut branch openings in the main pipe. This method is fast and accurate for most these production. Edges are deburred before welding.

Plasma Cutting – For Thick Wall Pipe:

For pipe over 1/4 inch wall thickness, plasma cutting provides clean, square branch openings. This welded tee fittings preparation method is used for high pressure and heavy wall applications.

CNC Machining – For Precision Requirements:

For critical welded tee fittings where tight tolerances are required, we CNC machine the branch opening. This produces the most accurate fit up for full penetration branch welds.

For all projects, we inspect branch hole size and position. Any mismatch greater than 1/16 inch is corrected before welding.

Material Selection Guide:

Not all stainless steel performs equally in every environment. We stock three alloys for its production.

304 Stainless – The workhorse alloy for most industrial applications. Good corrosion resistance and excellent weldability. Our standard welded tee fittings for general industrial use.

316 Stainless – For marine environments, chemical plants, or applications involving chlorides. Molybdenum addition improves pitting resistance. A 316 fitting costs more but lasts indefinitely.

304L and 316L Low Carbon – For applications requiring maximum weld integrity. Lower carbon content reduces weld decay risk. Recommended for welded tee fittings in high humidity environments.

We do not recommend free machining stainless grades for any welded tee fittings application.lies.

Welding Processes for Different Wall Thicknesses:

We select the optimal welding process based on your pipe wall thickness for each welded tee fittings order.

GTAW for 1.5mm to 4mm Wall Pipe:

Manual TIG welding gives fine control over the weld puddle. For thin wall welded tee fittings, we use amperage between 60 and 120 amps with 1/16 inch 308L filler rod. Purge gas is used inside the pipe.

Pulsed MIG for 3mm to 8mm Wall Pipe:

Pulsed spray transfer reduces spatter and allows higher deposition rates. Our pulsed MIG welded tee fittings production runs at 180 to 250 amps with 0.045 inch 309L wire. Most cost effective for orders over 50 pieces.

Robotic MIG for High Volume:

For customers needing 200 or more identical assemblies, robotic welding ensures each welded tee fittings joint matches the last. We program weld paths directly from CAD files.

Multi Pass Welding for Wall Over 8mm:

Thick wall welded tee fittings require multiple weld passes. Root pass, fill passes, and cap pass are each controlled for interpass temperature.

Distortion Control During Tee Welding:

Tee fittings warp from weld heat because the branch weld shrinks as it cools. A distorted fitting will not align properly with adjacent pipe. This is critical for every welded tee fittings operation.

Our solutions include:

• Balanced welding sequence – Weld alternating sides of the branch
• Strongback fixturing – Clamp main pipe rigidly during welding
• Internal purge with copper chill rings – Sink heat away
• Low heat input technique – Use smallest possible filler wire
• Post weld sizing – Hydraulic correction if needed

Using these methods, we hold dimensional accuracy to within 1/16 inch for most welded tee fittings applications.

Surface Finish Options:

The appearance of welded tee fittings matters for sanitary and visible installations. We offer three finish levels.

Mill Finish – As welded with light scaling. Suitable for hidden welded tee fittings where appearance does not matter. Lowest cost option.

Wire Brushed – Passivation followed by stainless wire brushing. Removes heat tint. Selected by 60 percent of customers for visible welded tee fittings.

Electropolished – Produces a bright mirror like finish. Resists fingerprints and makes cleaning easy. Recommended for pharmaceutical and marine applications.

Common Applications and Industries:

Our clients use our welded tee fittings service for many purposes.

Industrial Piping Systems:

Chemical plants, refineries, and manufacturing facilities use welded tee fittings throughout their pipe networks. Our components provide reliable branch connections.

Fire Sprinkler Systems:

Commercial and residential fire protection. Welded tee fittings for sprinkler systems must meet NFPA standards. Each branch connection is inspected.

Exhaust Systems:

Diesel generators and industrial exhaust stacks use welded tee fittings for branch connections. High temperature applications require 316 stainless.

Food and Beverage Processing:

Sanitary piping requires smooth crevice-free branch welds. Our welded tee fittings for food service are polished and passivated.

Pharmaceutical and Biotech:

Clean steam and purified water systems. Every welded tee fittings assembly for pharmaceutical use receives electropolished finish.

Water and Wastewater Treatment:

Pump stations and filter systems. Our welded tee fittings handle corrosive environments with 316 stainless.
